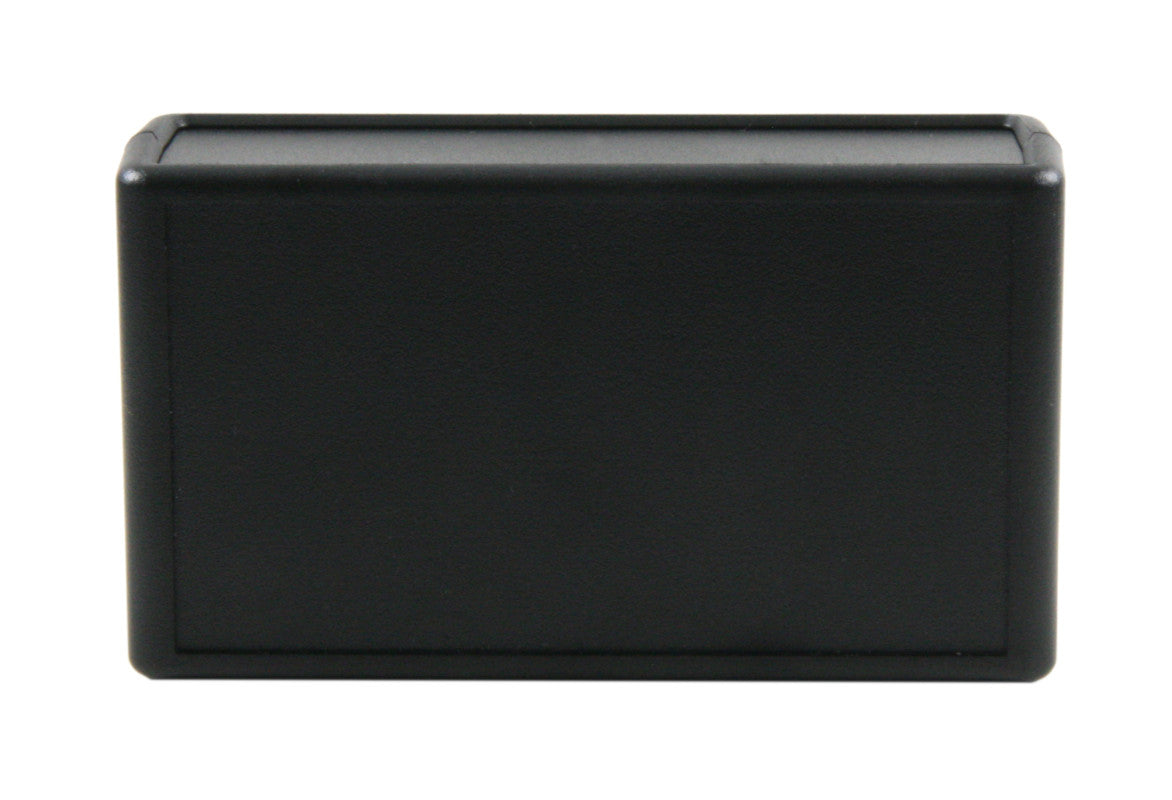

BOX1-P14 Plastic Enclosure for Size1 PCBs

Description:

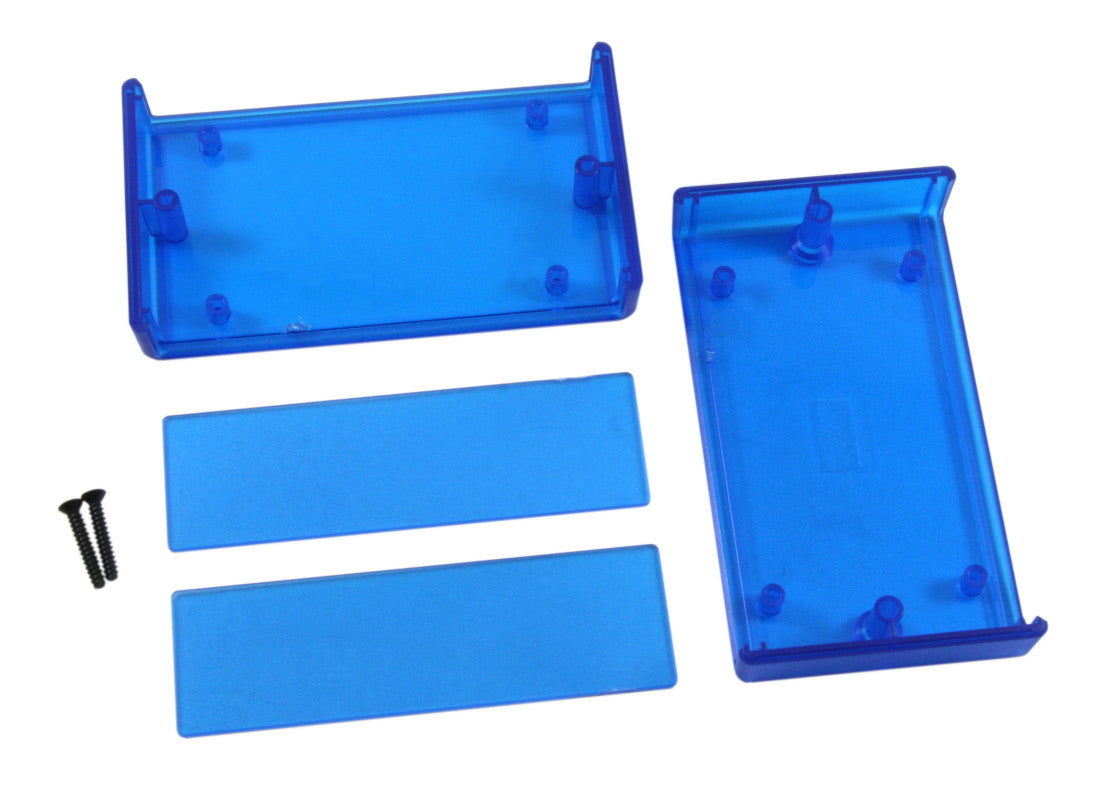

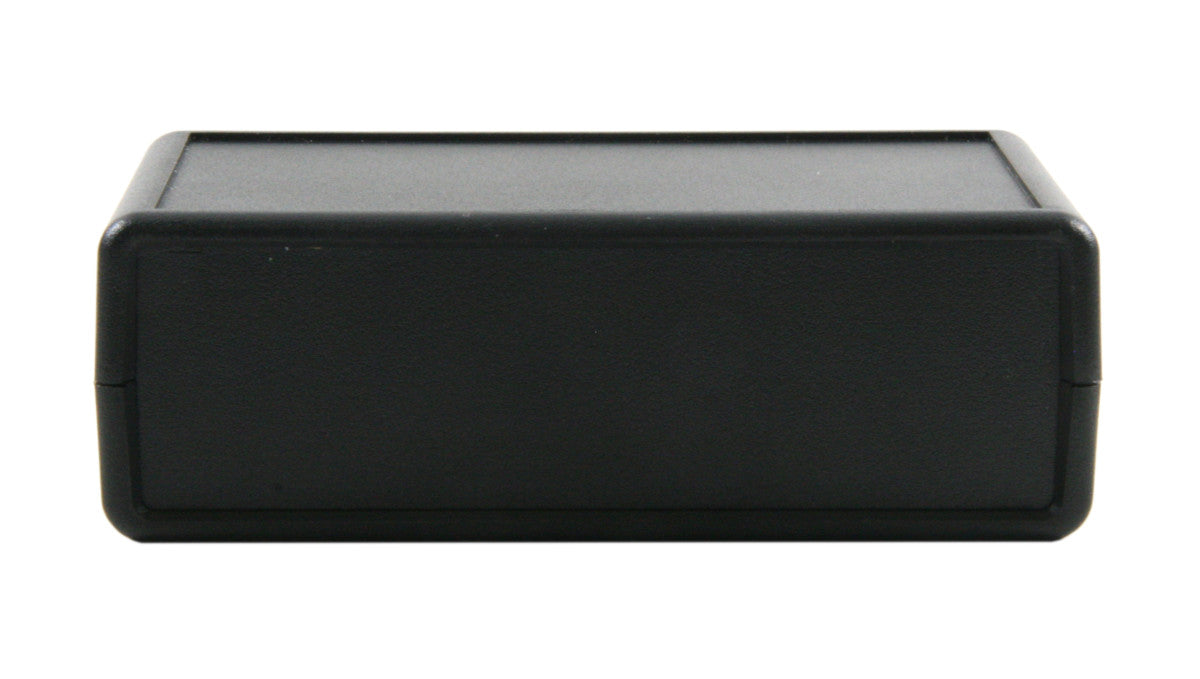

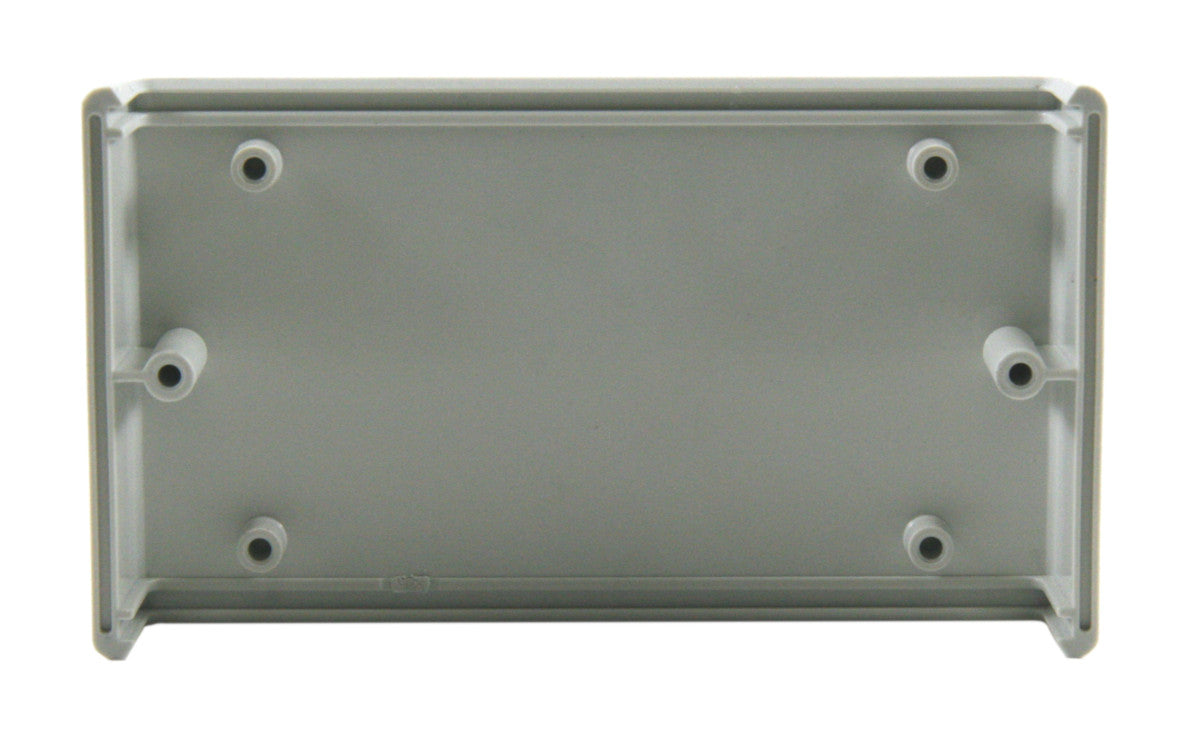

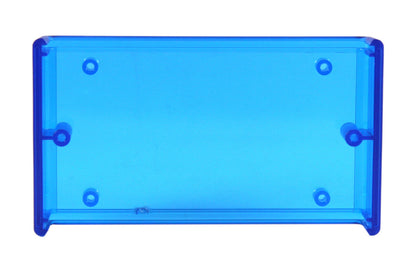

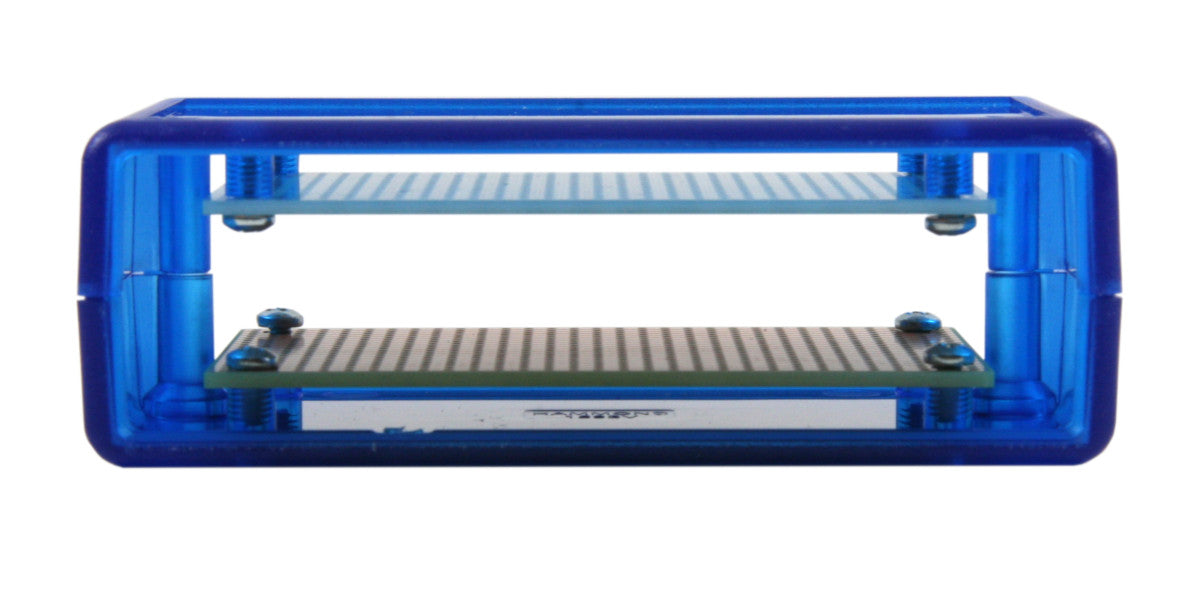

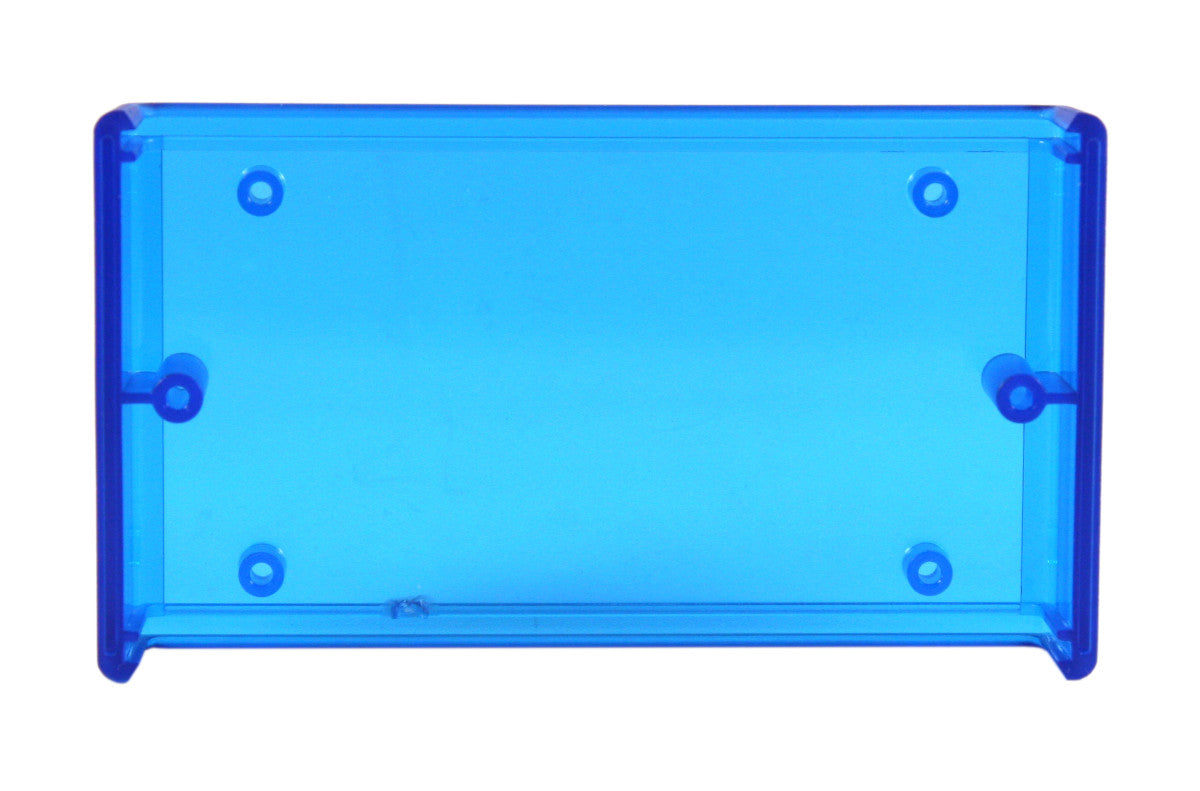

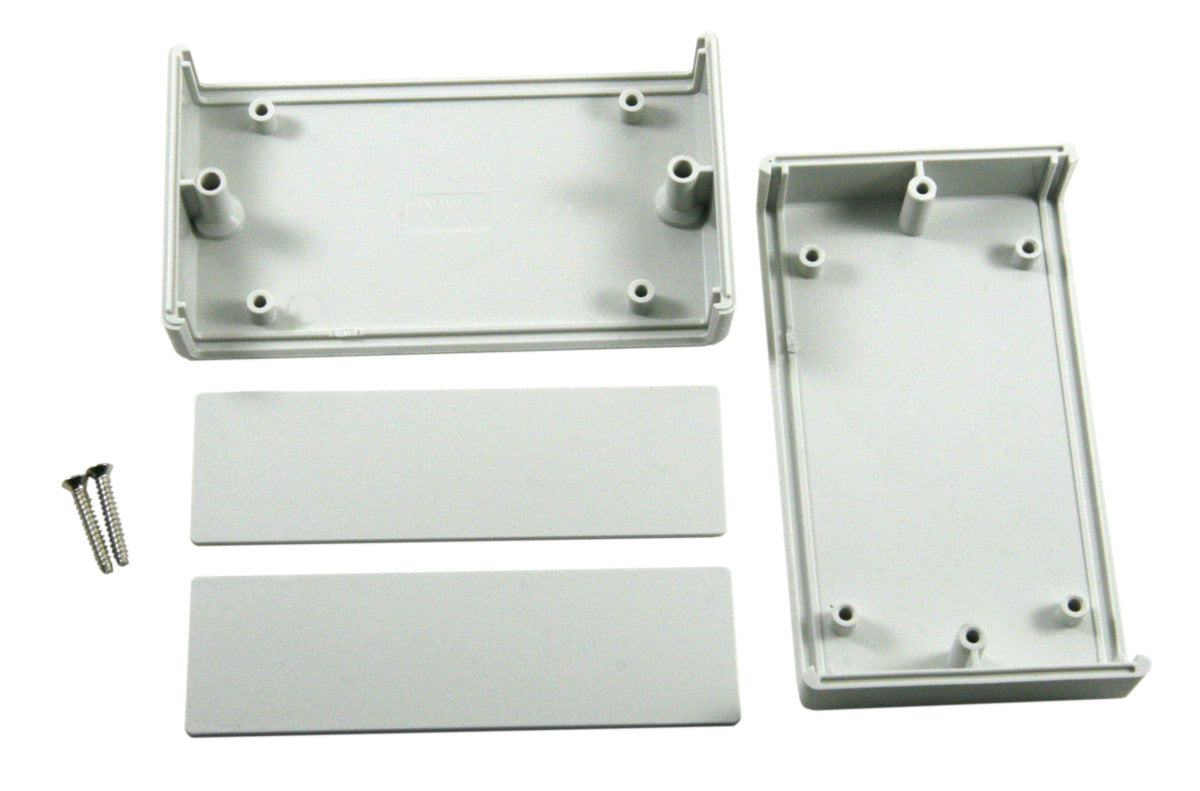

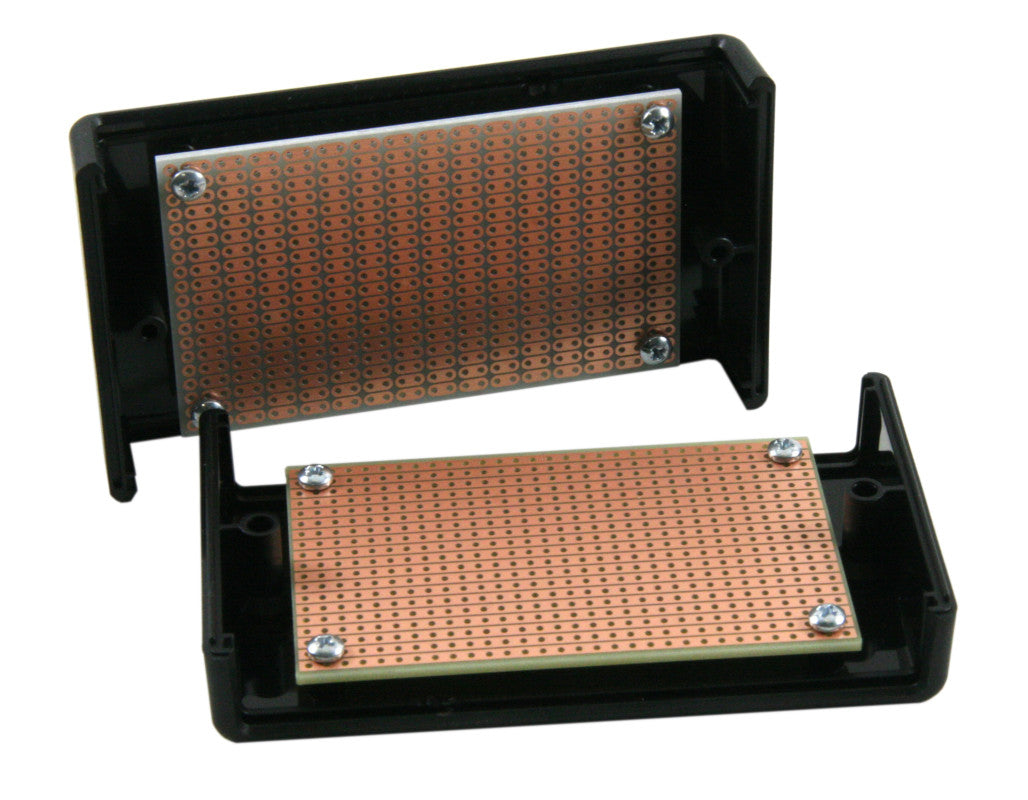

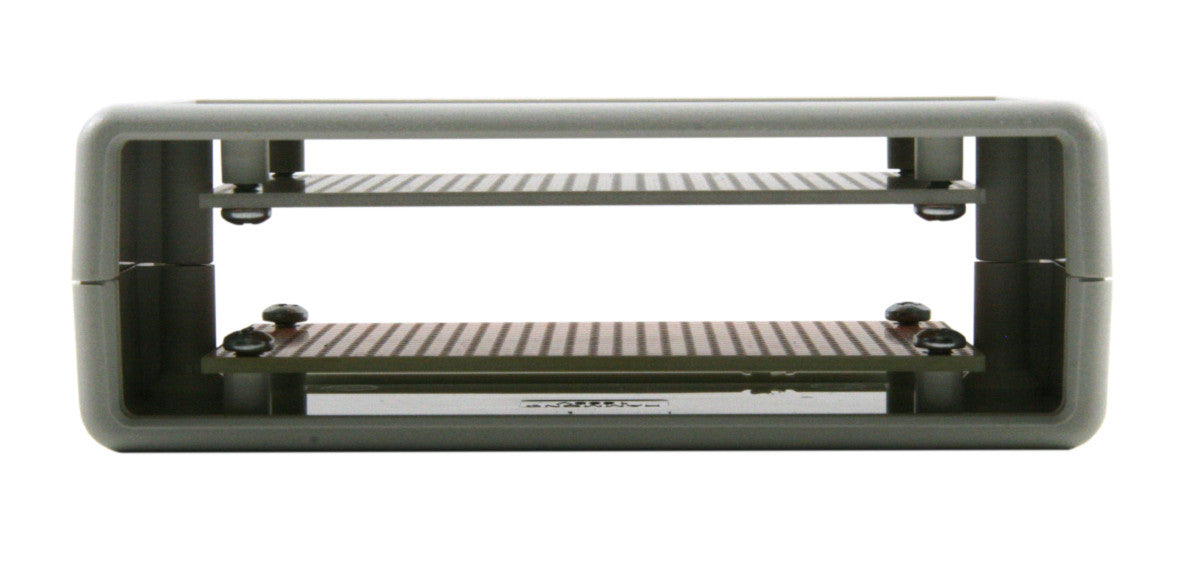

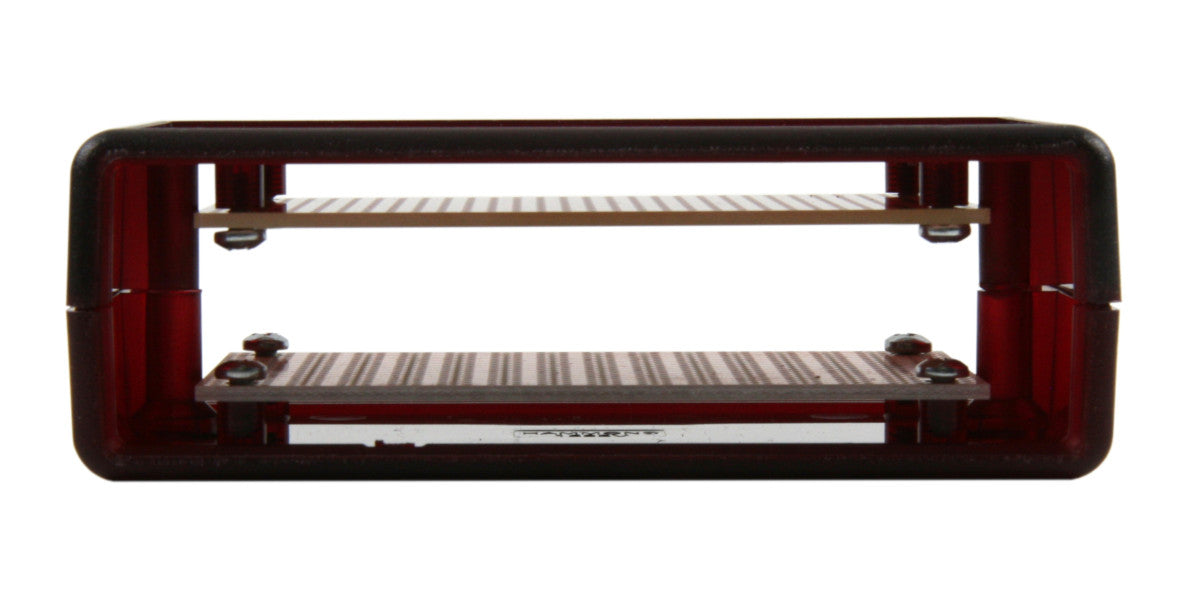

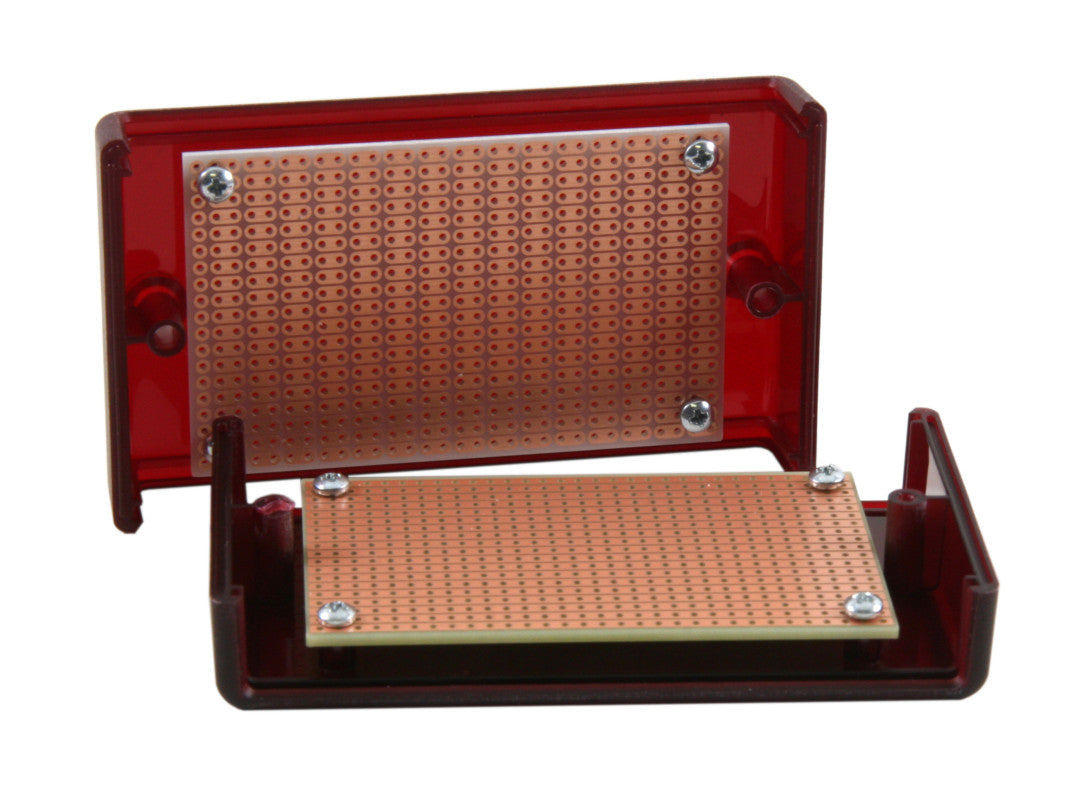

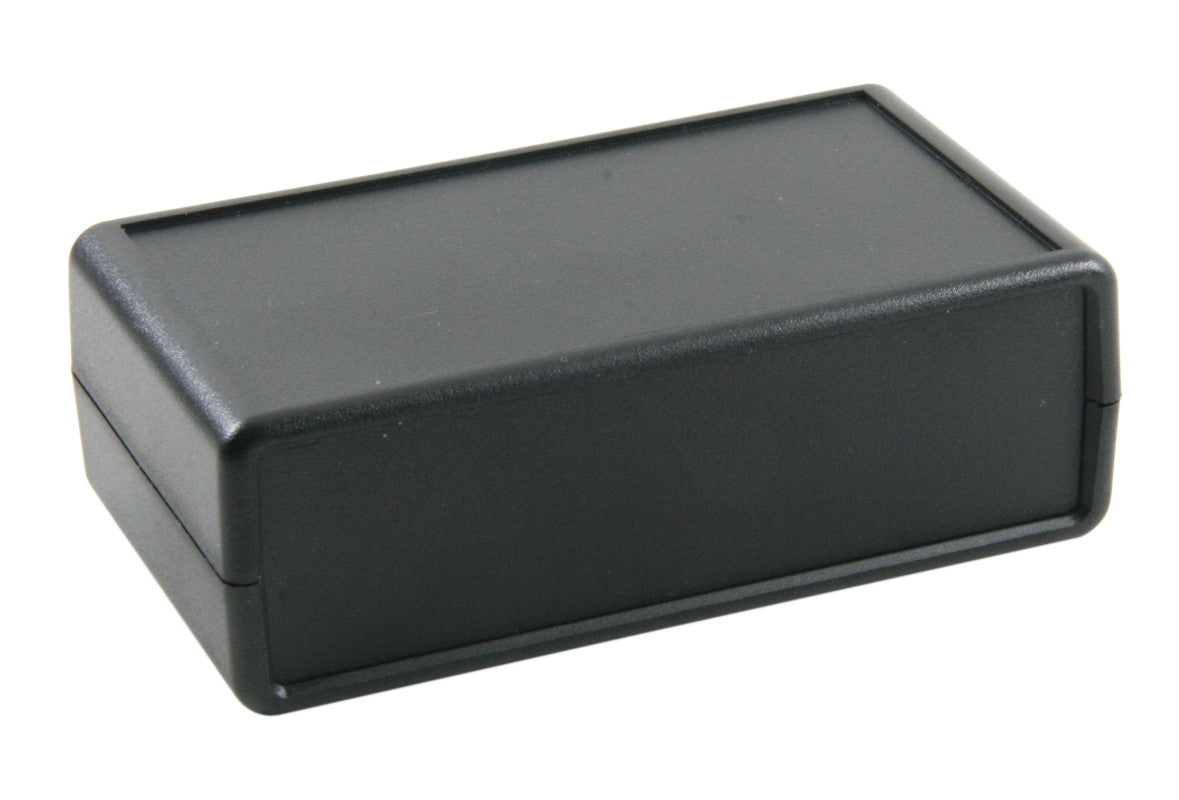

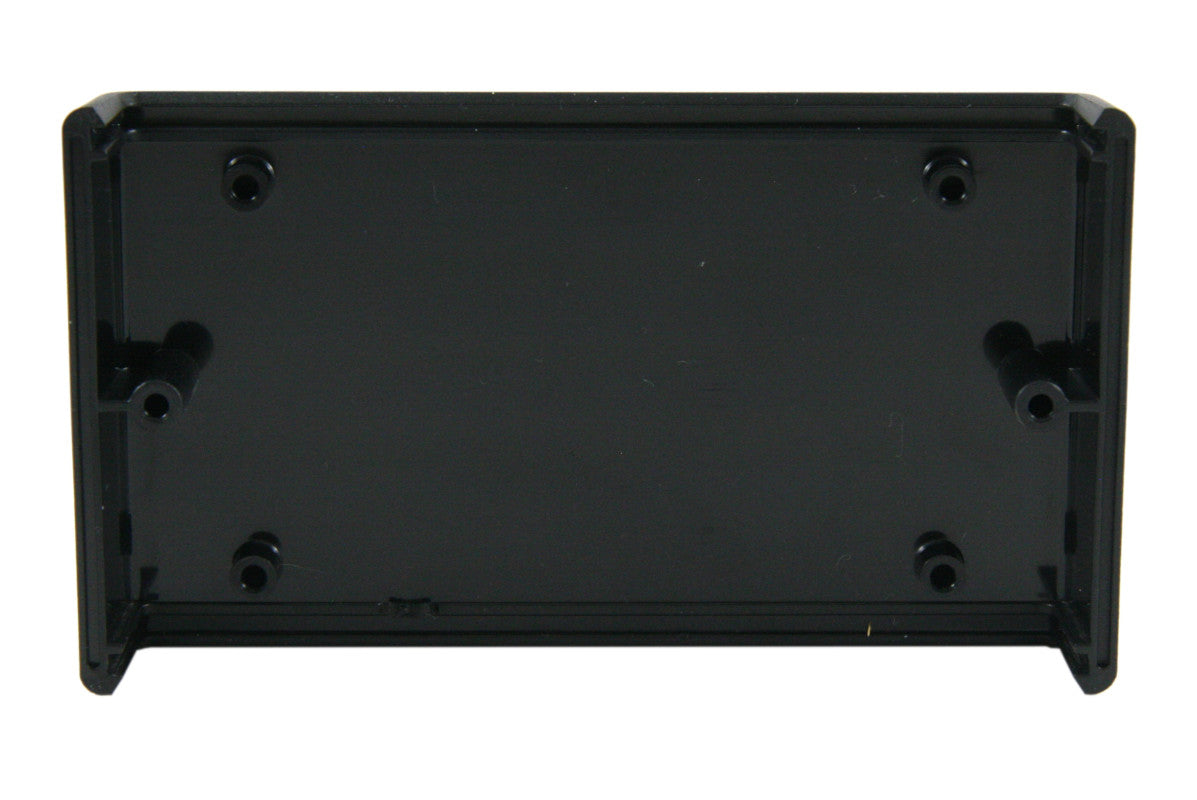

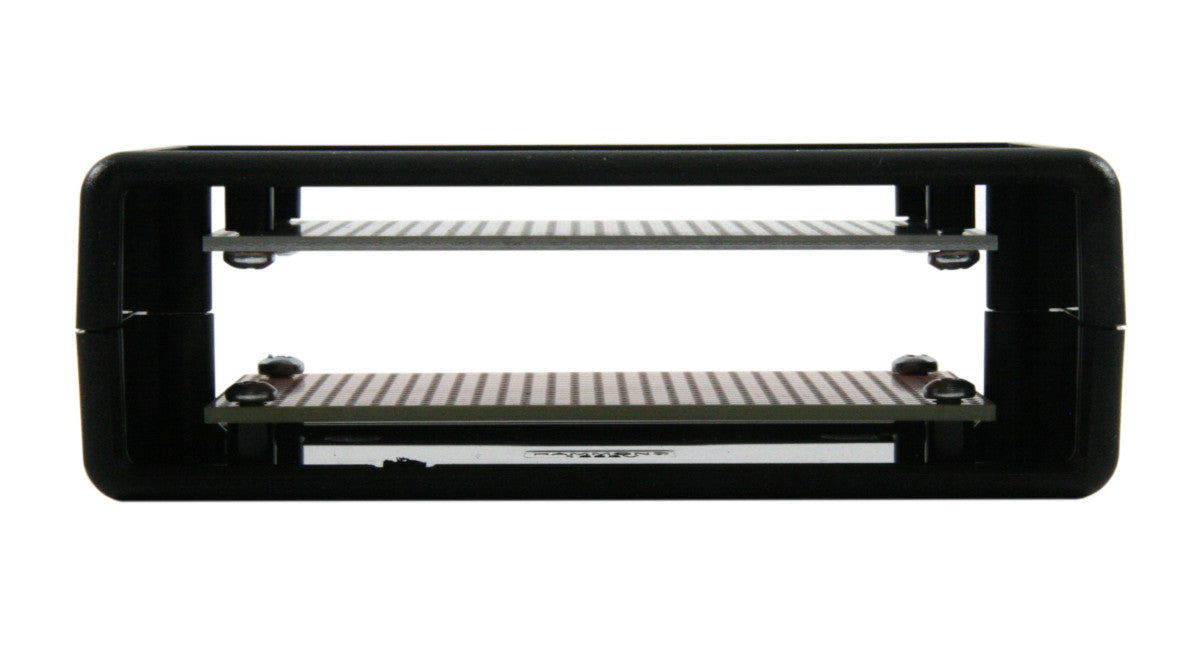

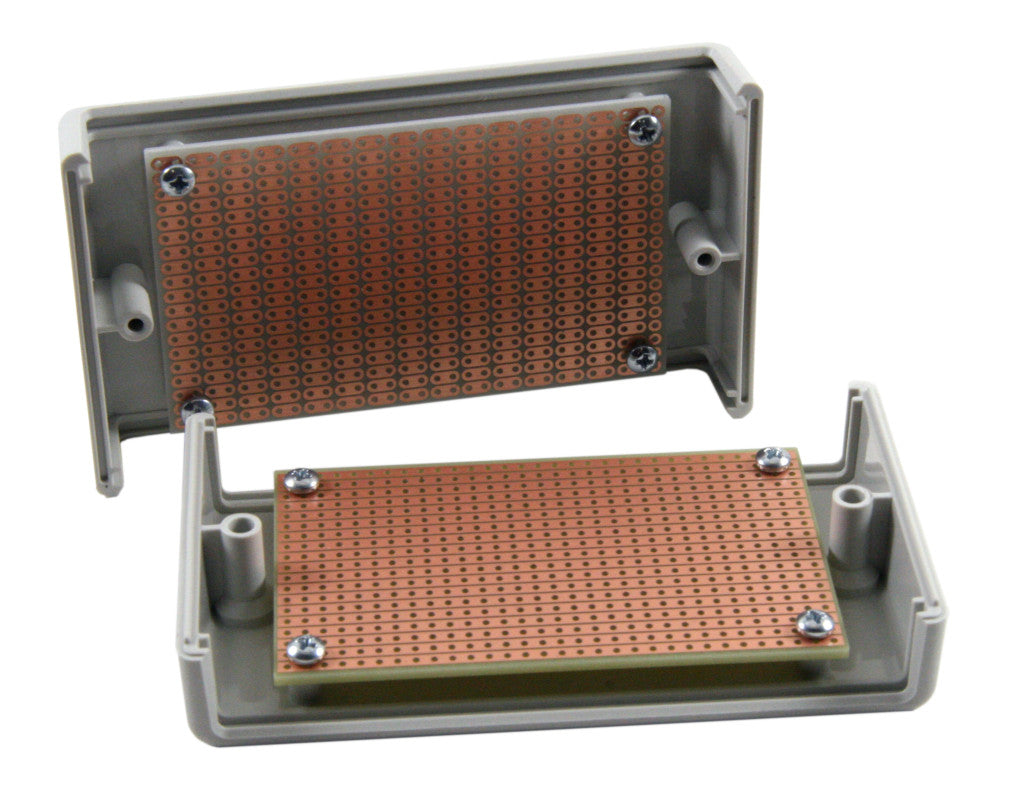

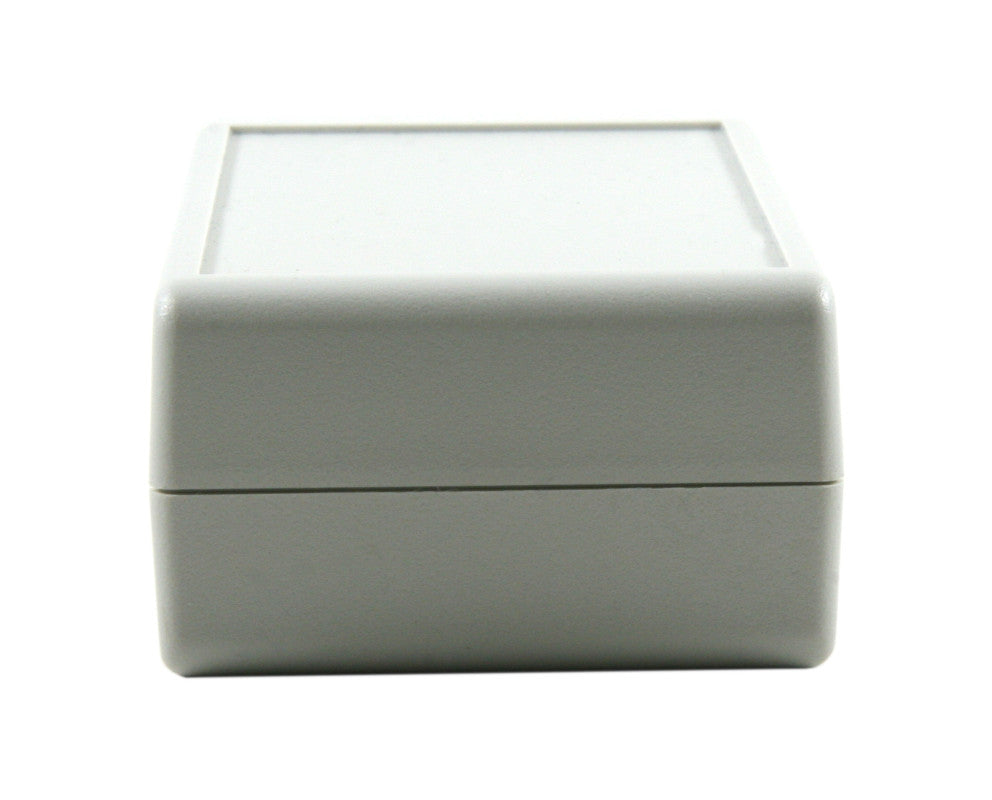

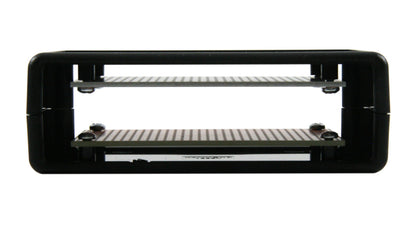

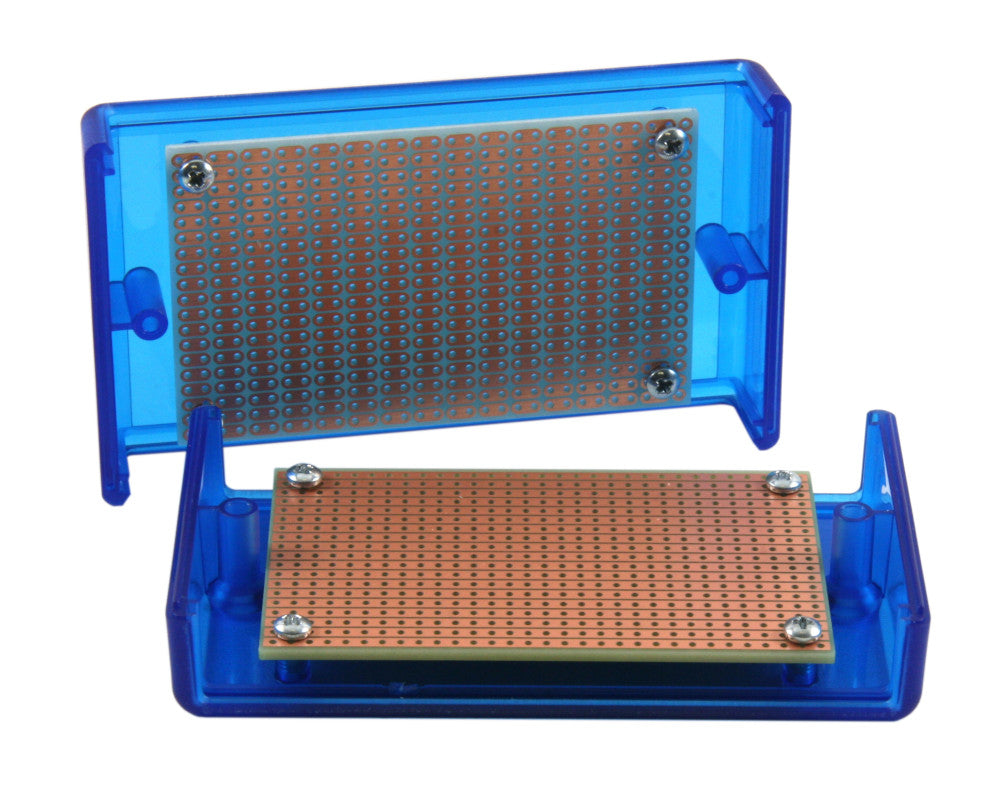

The BOX1-P14 is a handheld electronic instrument enclosure constructed from ABS plastic Up to two Size1 PCBs (80 x 50mm / 315 x 197") can be installed with the built-in PCB standoffs, one on the inside top and one on the inside bottom The plastic enclosure is easy to drill and features a textured finish that hides fingerprints and provides additional grip Two removable end panels can be drilled for connectors.

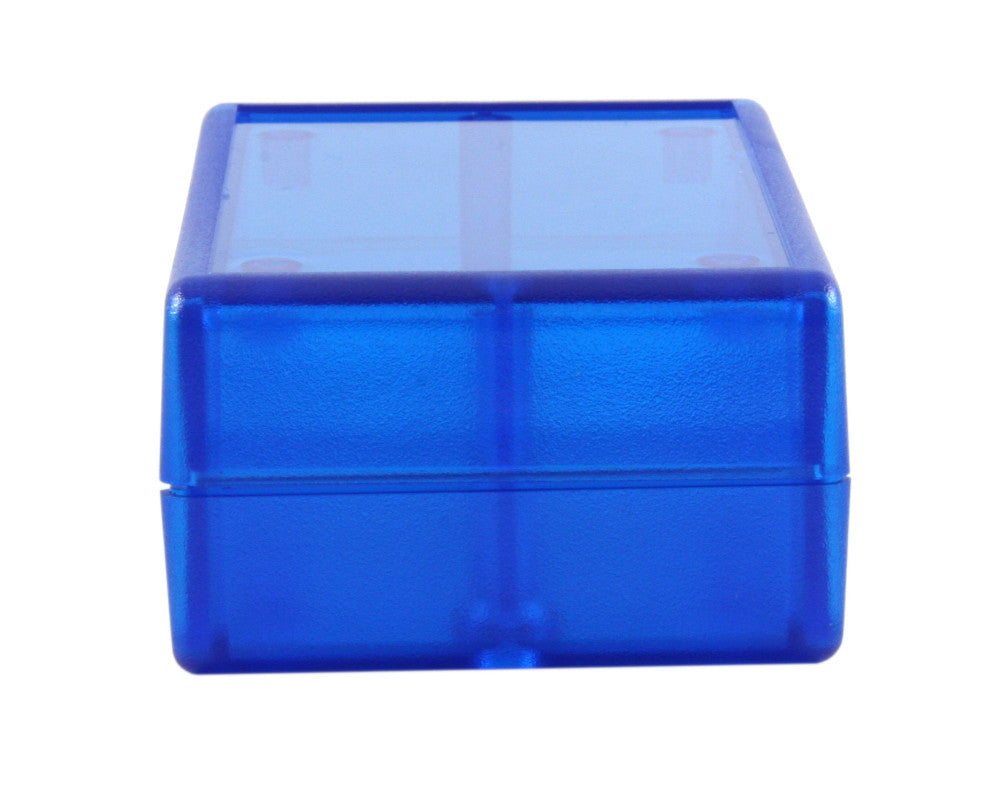

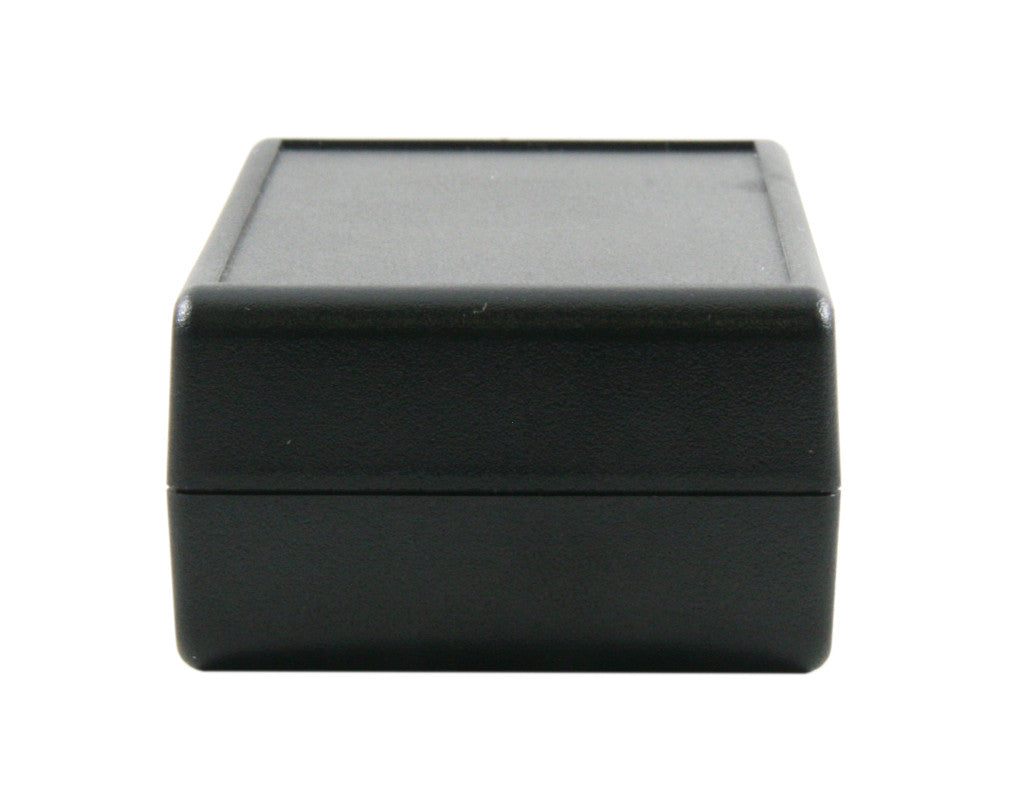

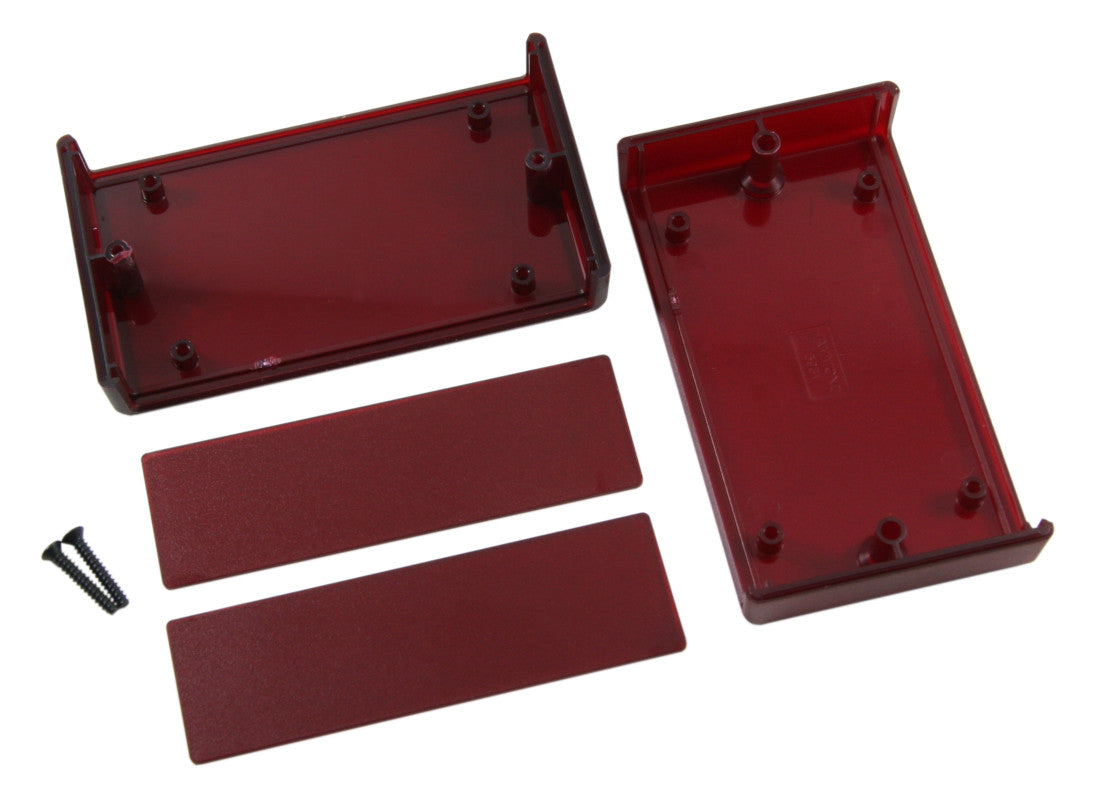

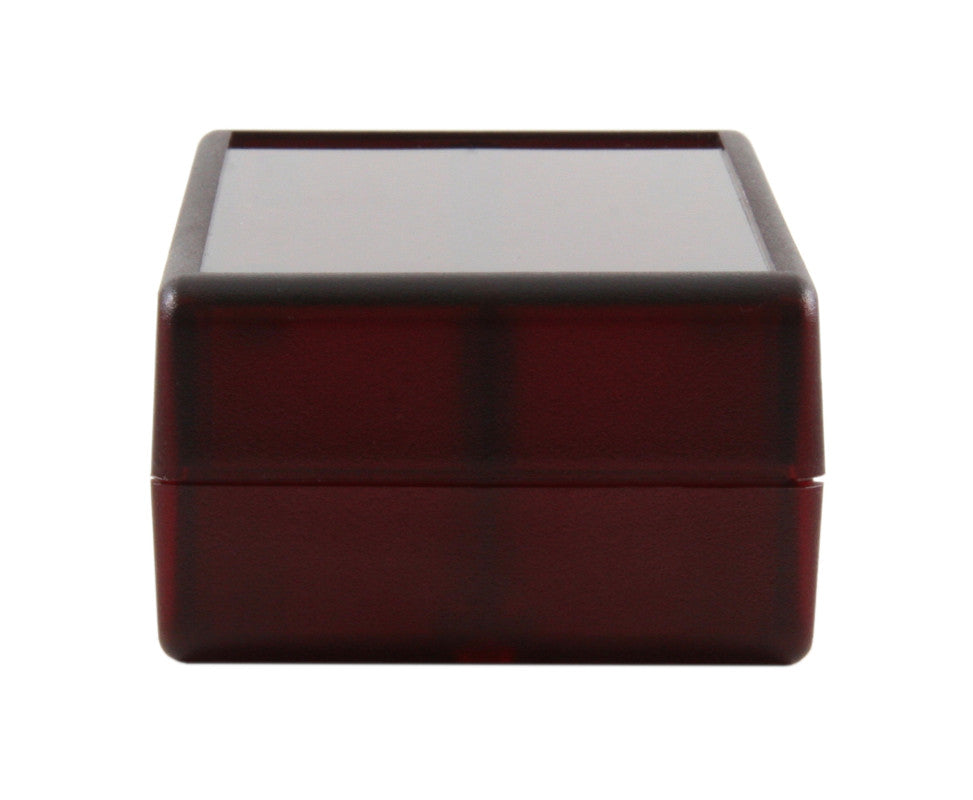

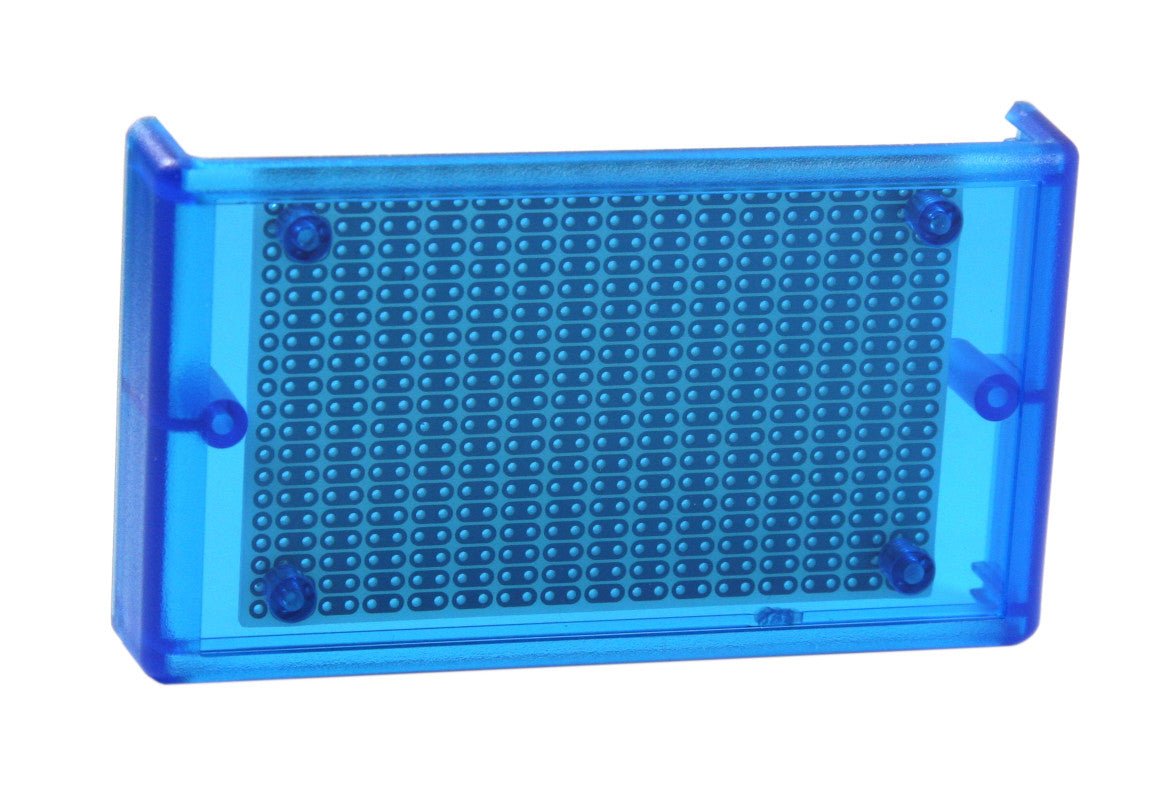

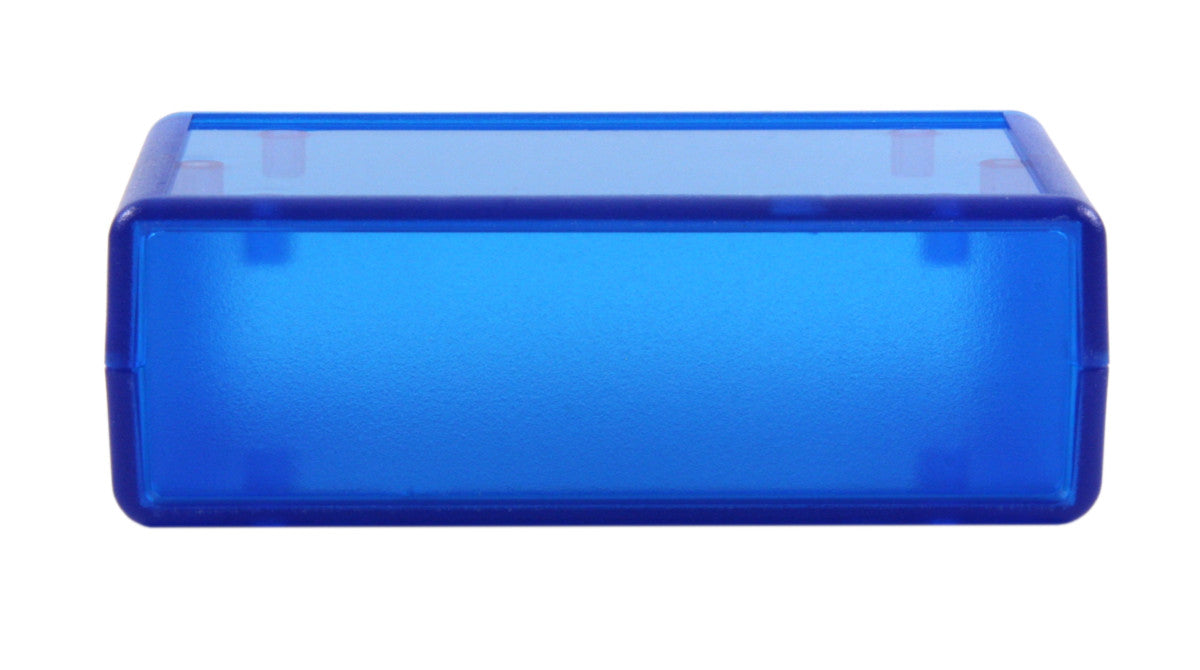

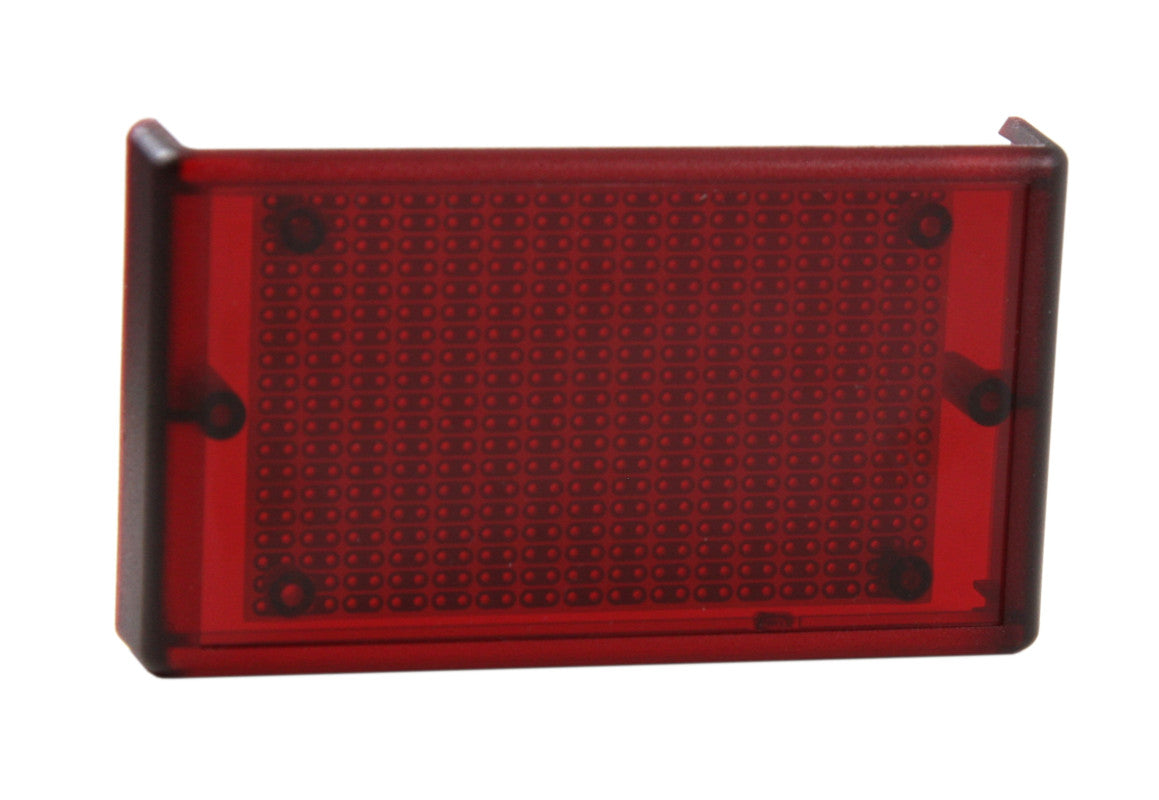

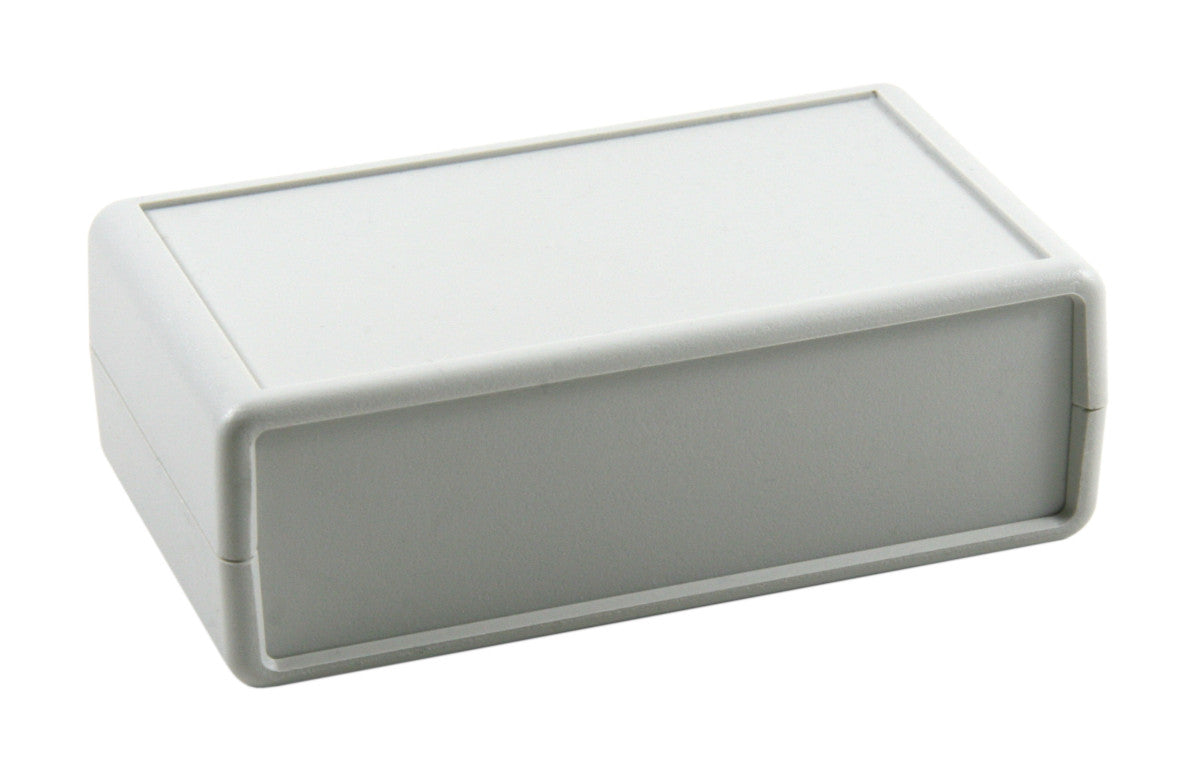

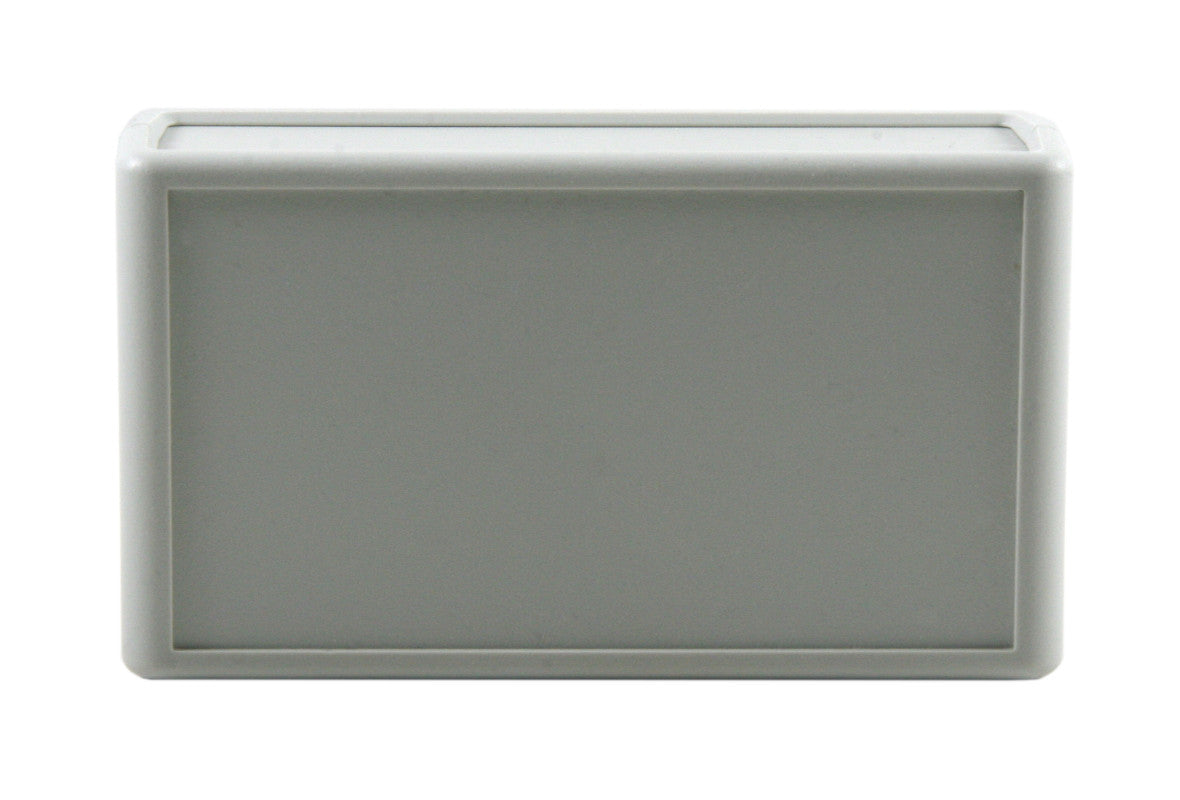

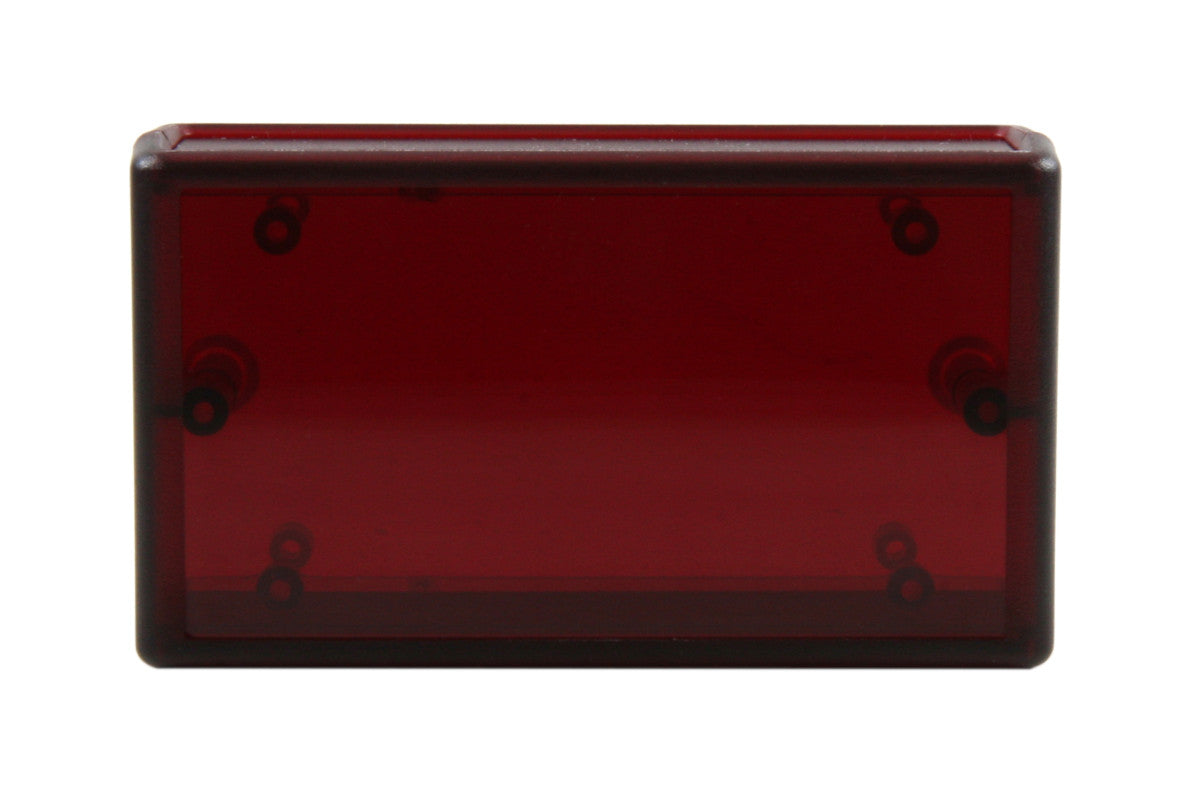

The enclosure's top panel features a recessed top for an adhesive overlay or membrane keypad The recessed top on the transparent red and blue enclosure have a clear smooth finish designed for easy viewing of displays Lap joint construction provides an IP54 protection rating against dust accumulation and splashing water Self-tapping screws provided to close the enclosure Black and transparent blue enclosures come with black screws while grey and transparent red come with nickel finish screws.

PCB standoffs use standard 4-40 025" machine screws (not provided).

Features and Benefits:

•Enclosure fits up to two Size1 PCBs.

•ABS plastic construction with removable end panels.

•Recessed top for adhesive overlay or membrane keypad.

•Smooth top for clear display readability on transparent enclosures.

•Textured finish hides fingerprints and improves grip.

•Self-tapping screws provided for securing enclosure.
