BOX1-1455C Aluminum Enclosure for BPS Size1 PCBs

BOX1-1455C Aluminum Enclosure for BPS Size1 PCBs

SKU: BOX1-1455C-BK Download PDF

Now $16.00
BEFORE   Now $16.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

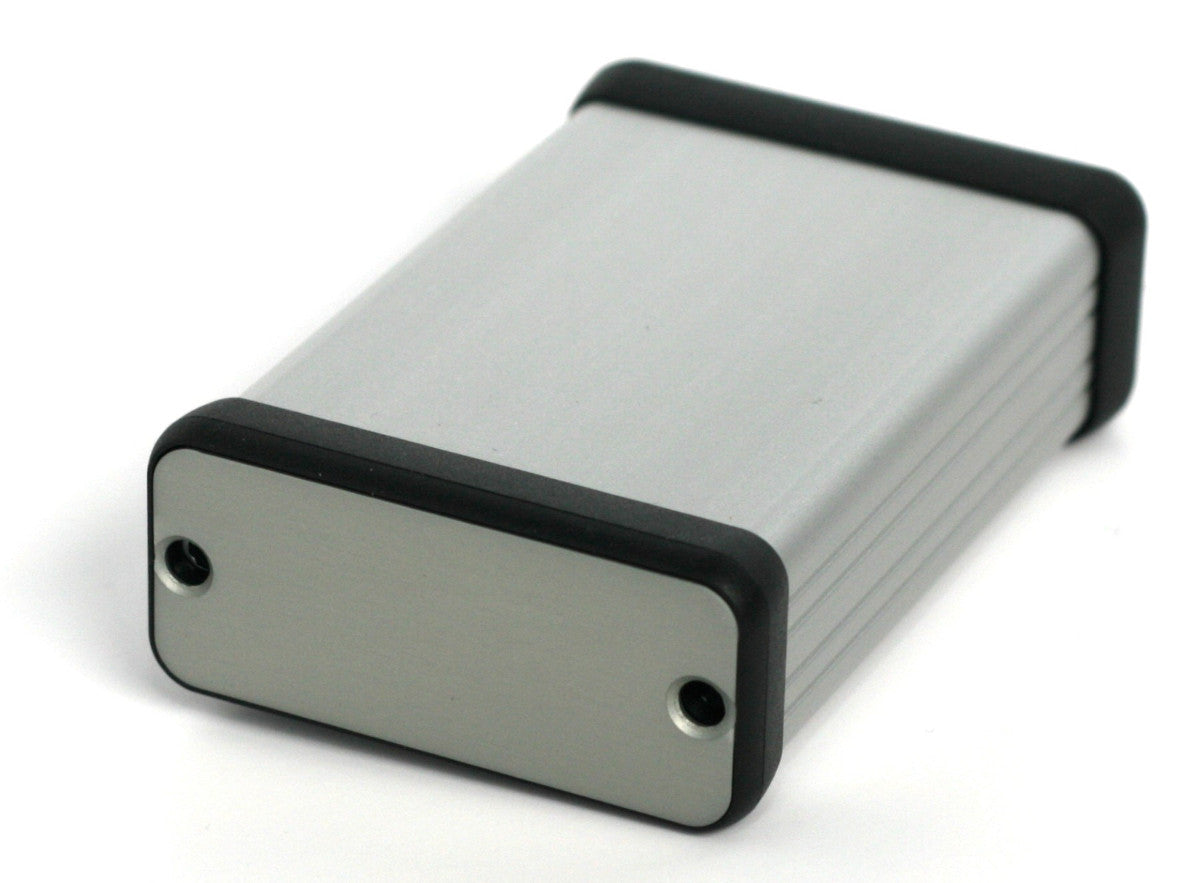

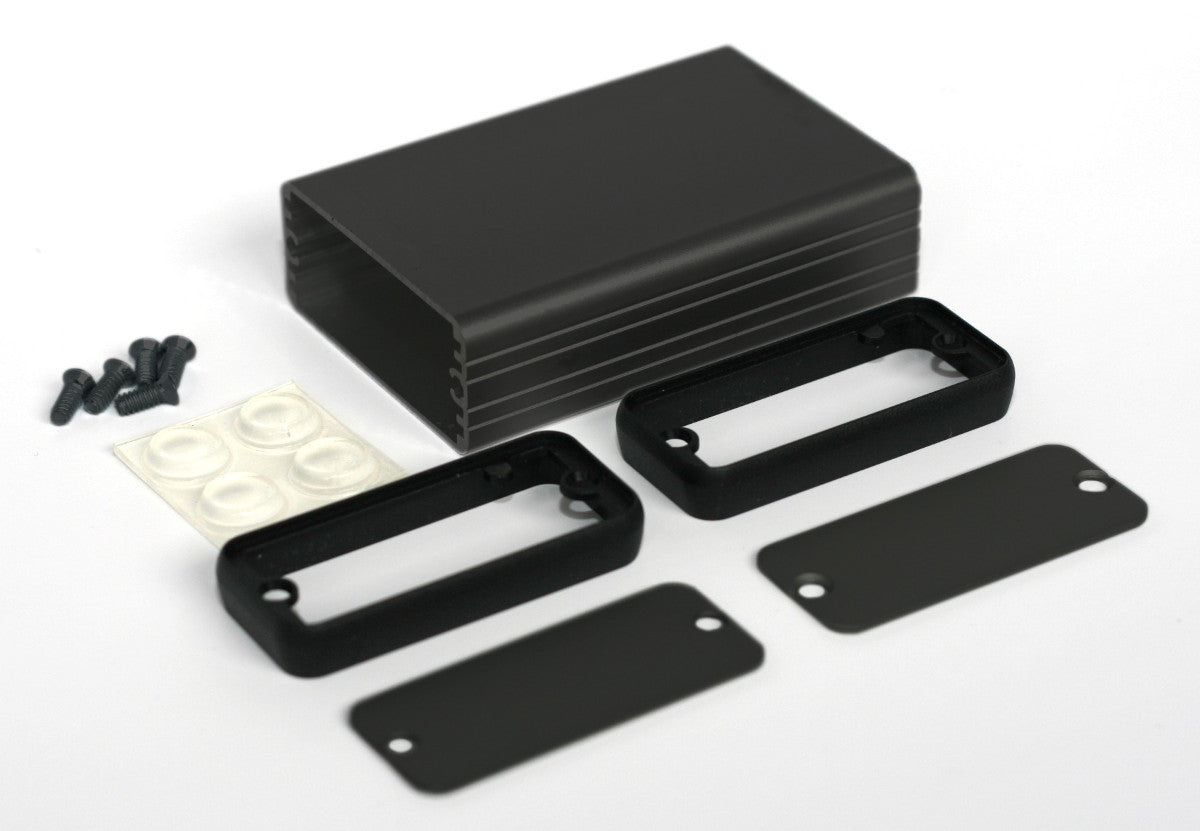

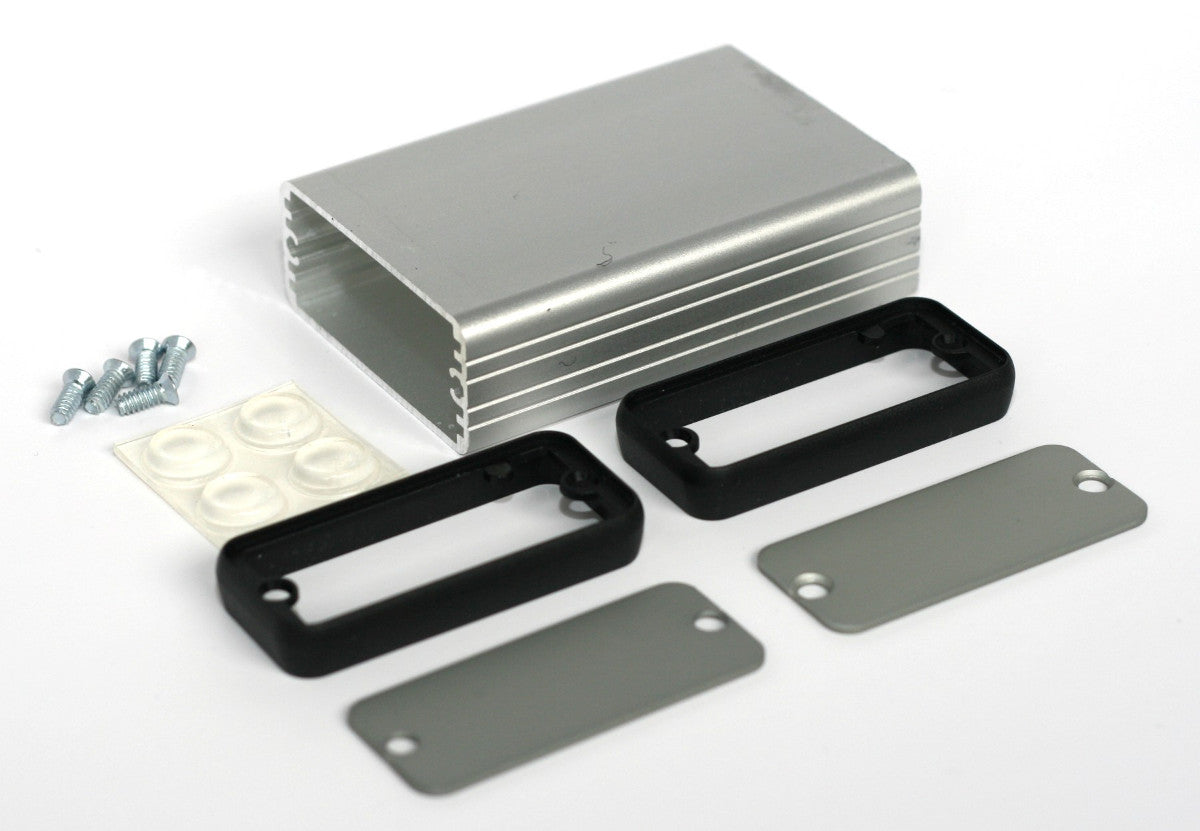

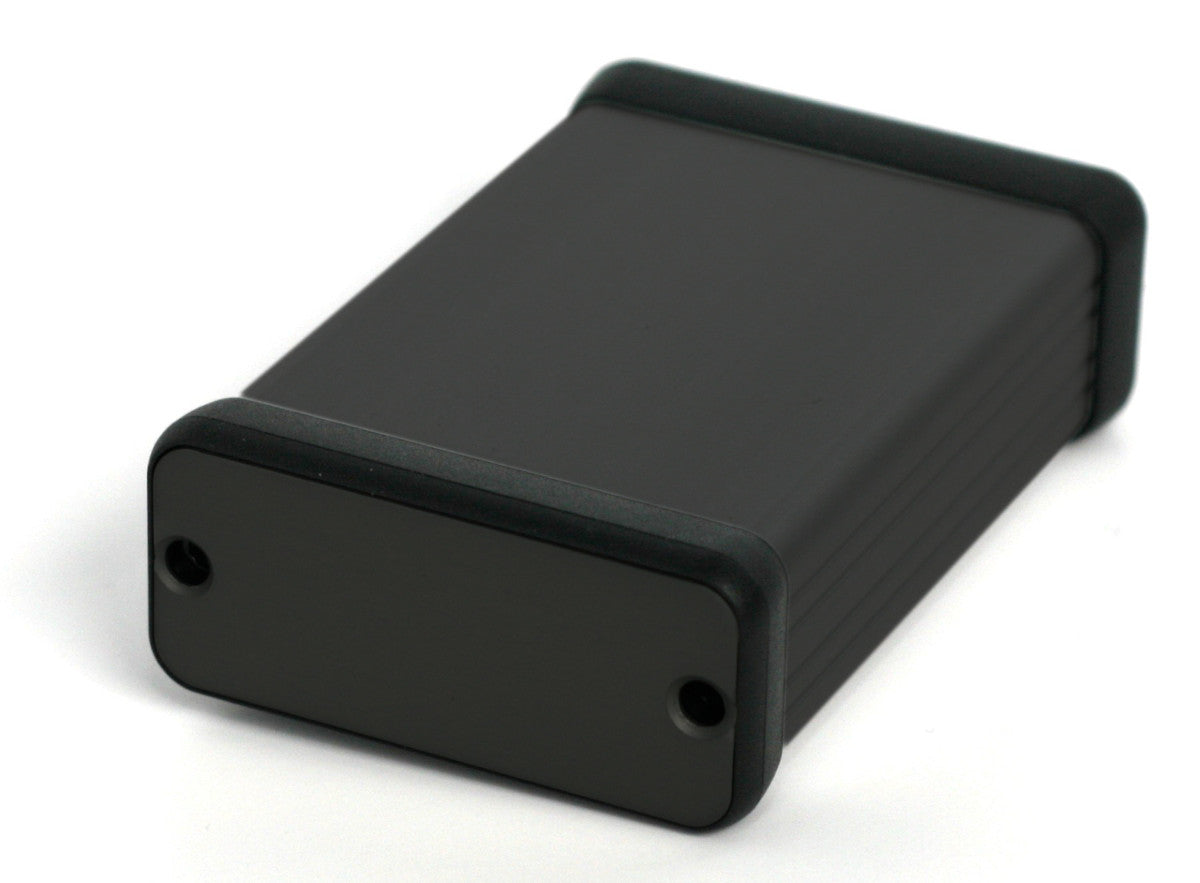

The BOX1-1455C is an extruded aluminum enclosure for electronic projects The enclosure is designed for BusBoard Prototype Systems Size1 prototype PCBs (80x50mm boards) PC boards mount horizontally by sliding into 4 built-in card guide slots Two aluminum end panels are provided with attractive plastic bezels to hide the seams The screws are recessed flathead type to provide a flat surface The silver aluminum is anodized (clear or black) for protection from the elements.

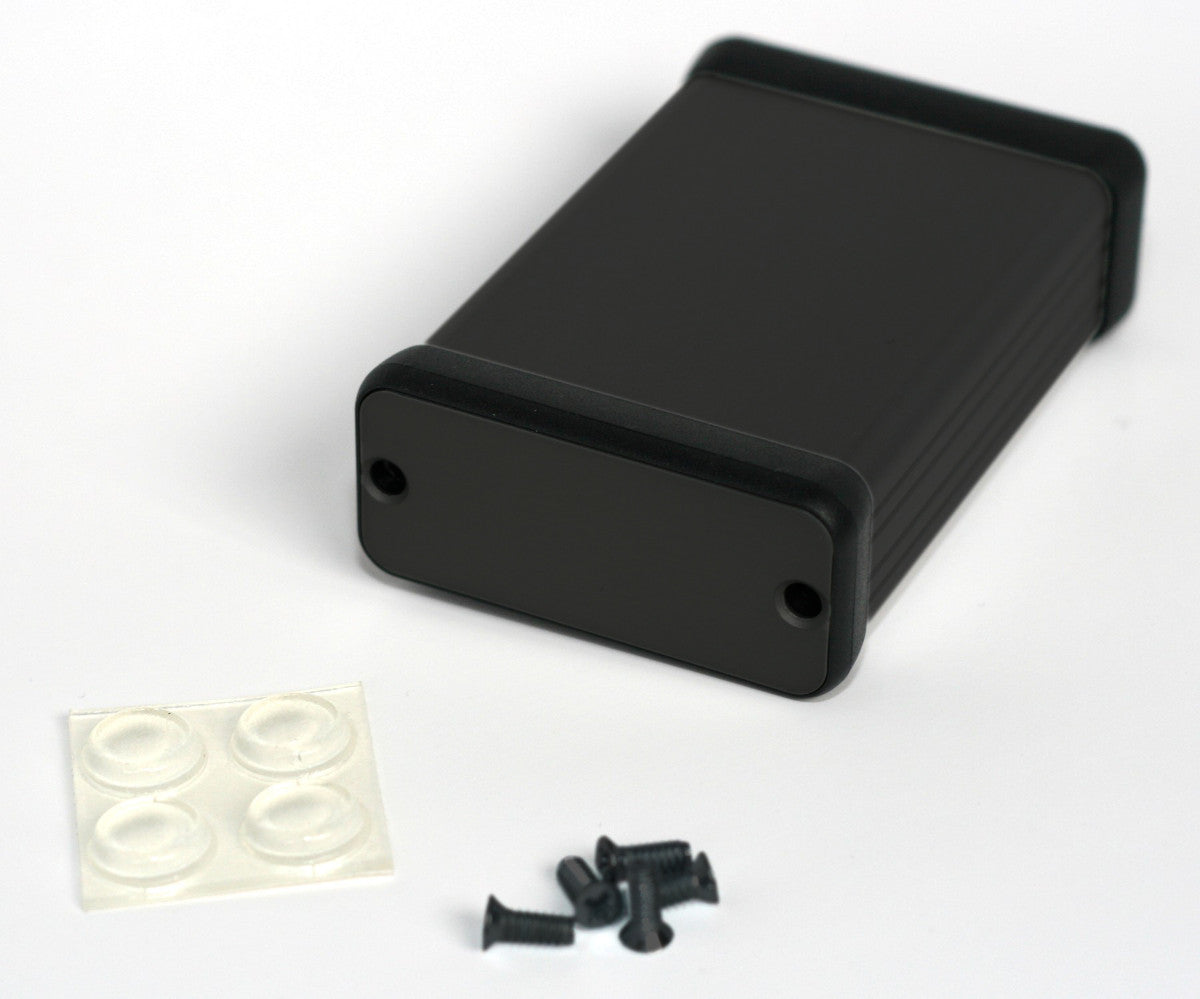

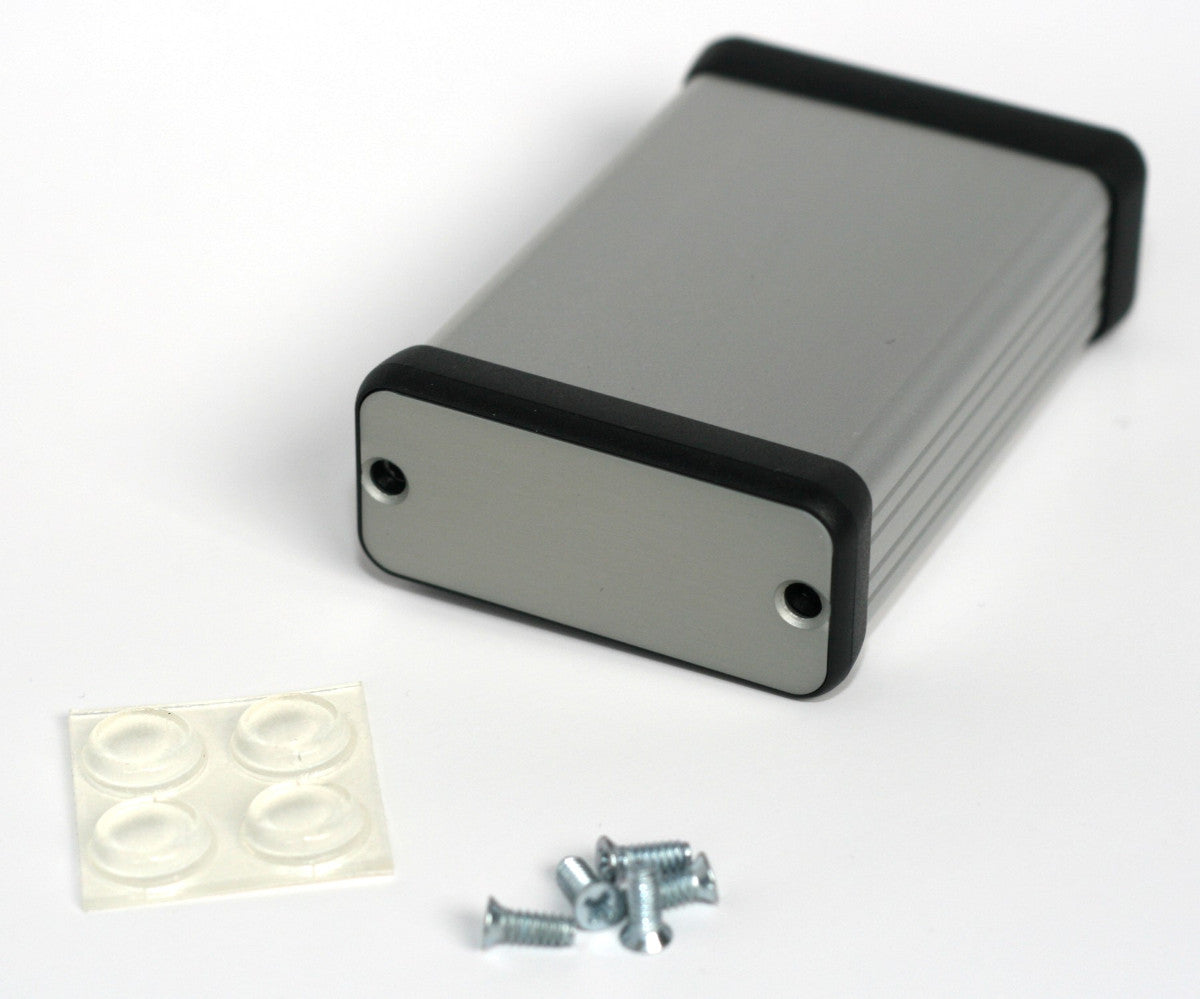

The end panels can be removed for easy drilling or cutting of holes Screws and adhesive rubber feet are included.

Features and Benefits:

    •Box is silver or black anodized extruded aluminum with end plates anodized to match and polycarbonate plastic bezels..

    •4 built-in card guides for Size1 PCBs (50 x 80mm)..

    •Screws and self adhesive rubber feet included..

    •Rugged body constructed from extruded aluminum with a minimum thickness of .06" (1.5 mm)..

    •Box Size 3.15 x 2.13 x 0.91 inches (80 x 54 x 23 mm)..

Specifications:

 Color silver or black
 Body Thickness minimum thickness of .06" (1.5 mm)
 Box Size 3.15 x 2.13 x 0.91 inches (80 x 54 x 23 mm)
 Card Guide Slots 4 built-in card guides for Size1 PCBs (50 x 80mm)
