BOX1-1455C Aluminum Enclosure for BPS Size1 PCBs

Description:

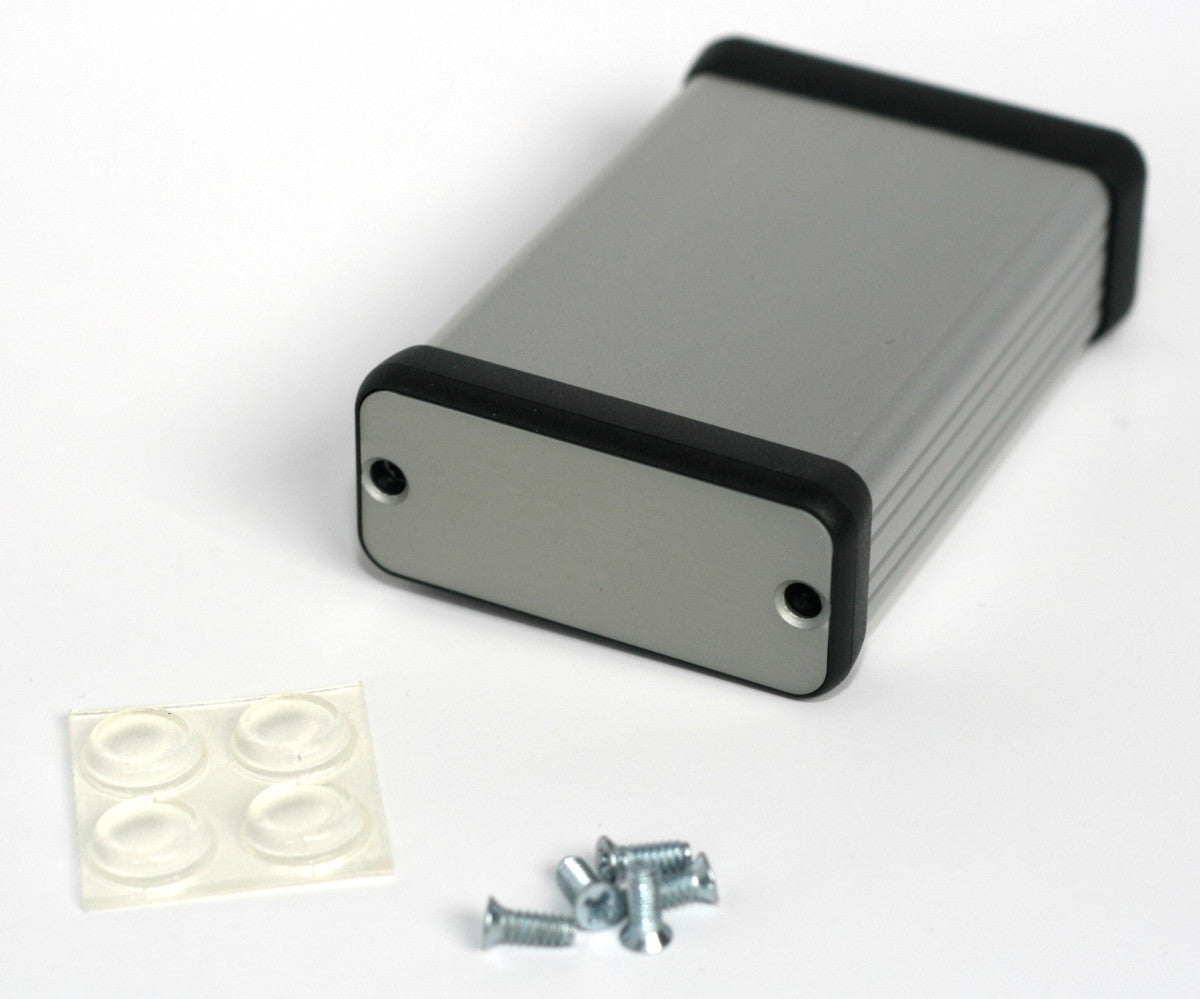

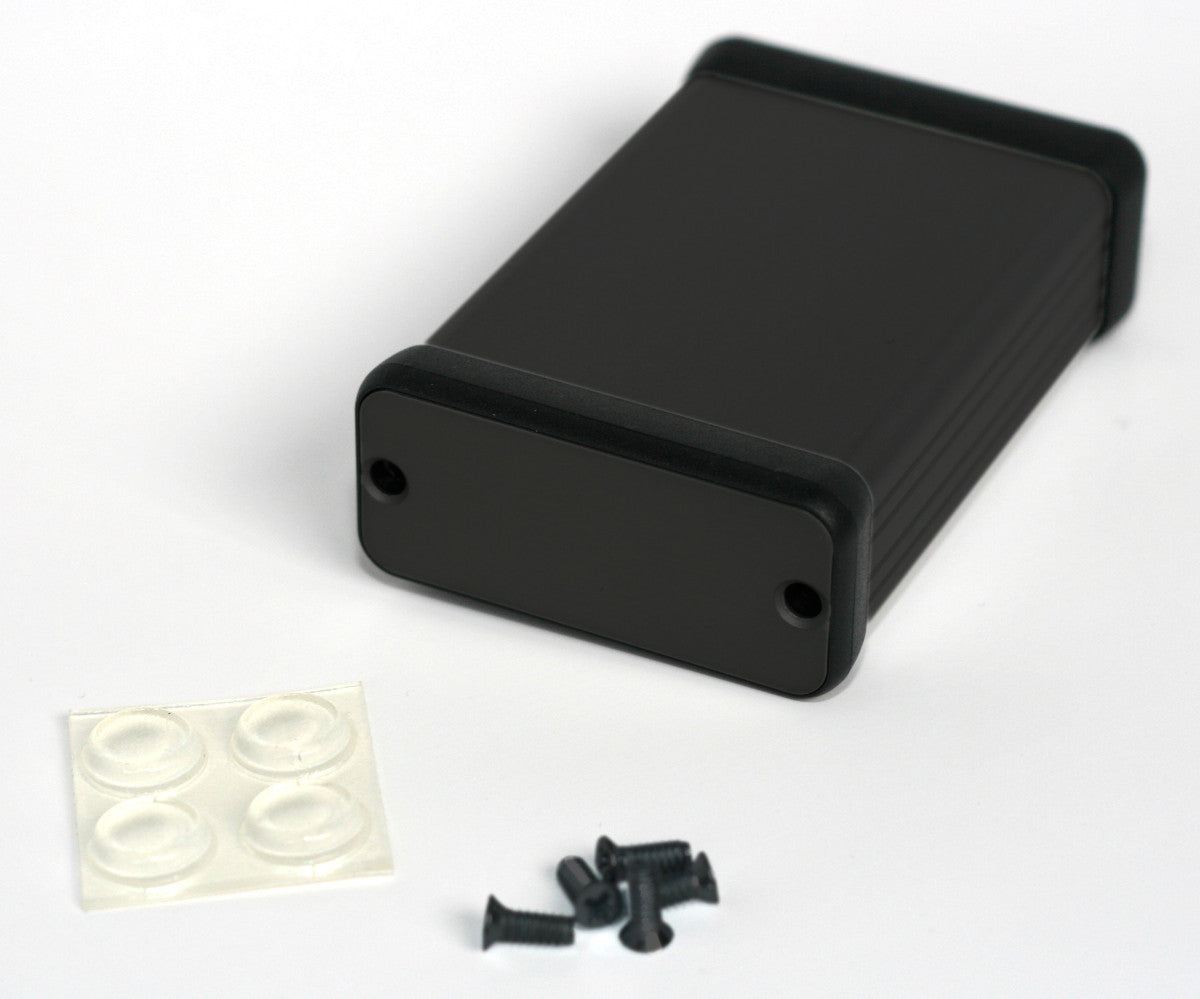

The BOX1-1455C is an extruded aluminum enclosure for electronic projects The enclosure is designed for BusBoard Prototype Systems Size1 prototype PCBs (80x50mm boards) PC boards mount horizontally by sliding into 4 built-in card guide slots Two aluminum end panels are provided with attractive plastic bezels to hide the seams The screws are recessed flathead type to provide a flat surface The silver aluminum is anodized (clear or black) for protection from the elements.

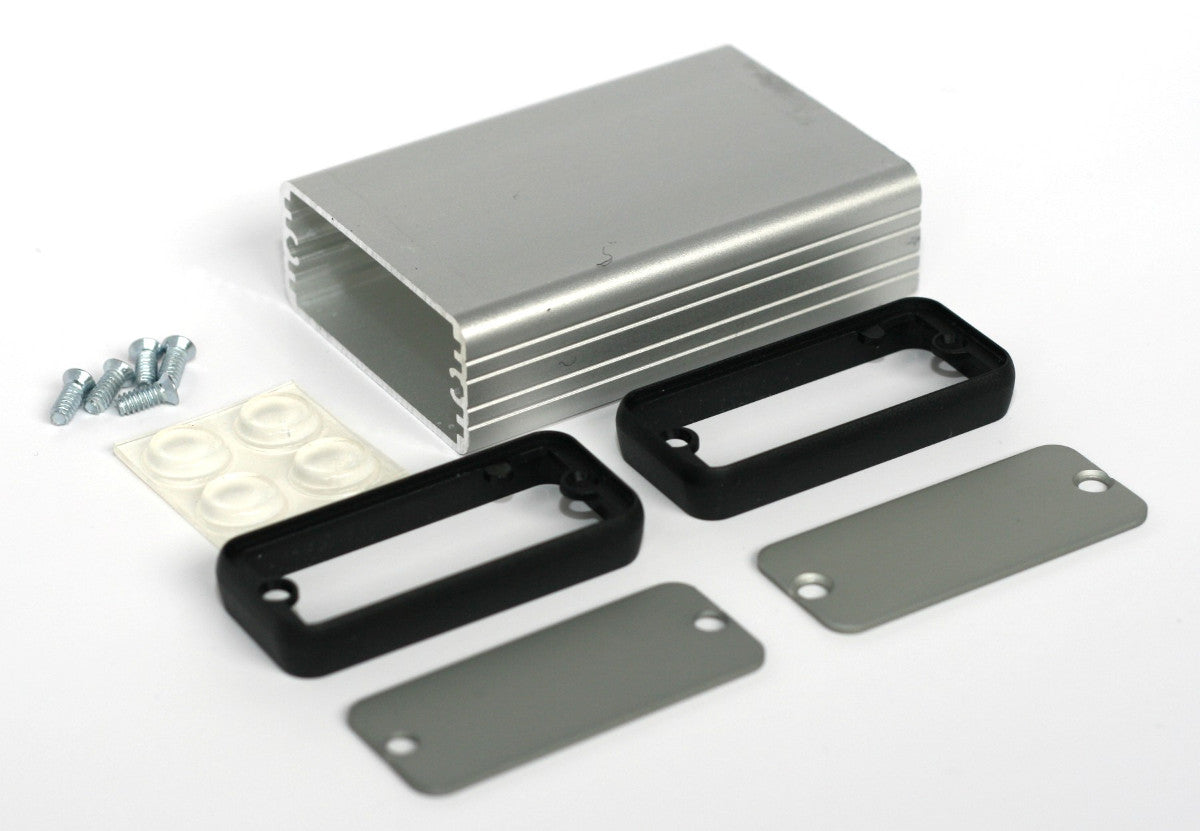

The end panels can be removed for easy drilling or cutting of holes Screws and adhesive rubber feet are included.

Features and Benefits:

•Box is silver or black anodized extruded aluminum with end plates anodized to match and polycarbonate plastic bezels..

•4 built-in card guides for Size1 PCBs (50 x 80mm)..

•Screws and self adhesive rubber feet included..

•Rugged body constructed from extruded aluminum with a minimum thickness of .06 inch (1.5 mm)..

•Box Size 3.15 x 2.13 x 0.91 inches (80 x 54 x 23 mm)..

Specifications:
