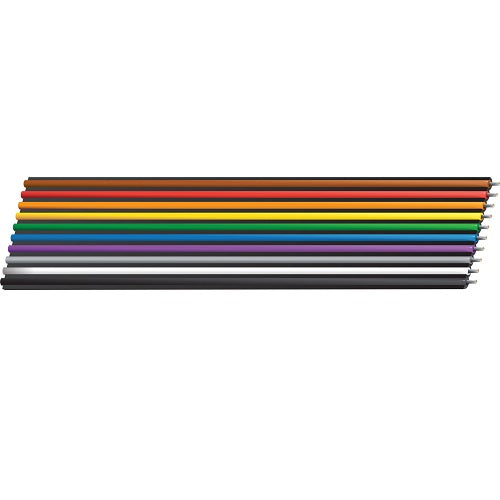

Belden 9R28026 28 AWG 26 Conductor 7x36 Stranding 0.050" Pitch Tinned Copper 300V Rainbow Ribbon Cable

Description:-

Rainbow Ribbon Cable 0.050" Pitch, 9R280XX Series, 26 Conductor, 28 AWG (7x36) Tinned Copper, PVC Insulated Conductors on PVC Substrate.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Conductor Spacing Center-Center: 0.050 +/- 0.003 in
• Conductor Spacing Center-Center Outside: 1.250 +/- 0.008 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C to +105°C

Applications:-

• Internal interconnection, internal wiring of electronic equipment, color-coded for quick identification and circuit tracing, easy breakouts for circuit routing, designed for mass-termination with standard IDC connectors

Specifications:-

• Size (AWG): 28
• No. of Conductors: 26
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 9R28026
