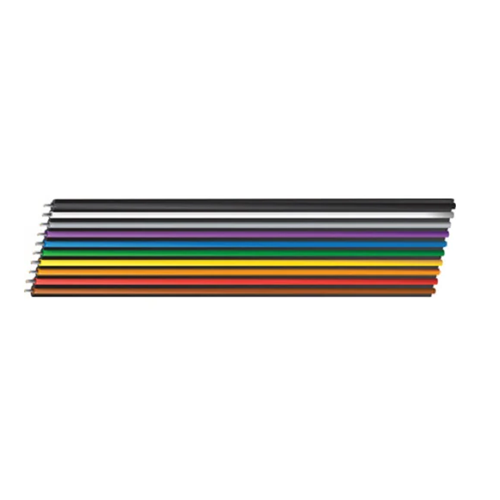

Belden 9R28010 28 AWG 10 Conductor 7x36 Stranding Tinned Copper 300V Rainbow Ribbon Cable

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 9R28010 28 AWG 10 Conductor 7x36 Stranding Tinned Copper 300V Rainbow Ribbon Cable

Description:

Rainbow Ribbon Cable 0.050" Pitch, 9R280XX Series, 10 Conductor, 28 AWG (7x36) Tinned Copper, PVC Insulated Conductors on PVC Substrate.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Conductor Spacing Center-Center: 0.050 +/- .003 in
• Conductor Spacing Center-Center Outside: 450 +/- 0.006 in

Standards:

• Voltage Rating: 300V
• Operating Temperature: -20°C to +105°C

Applications:

• Internal interconnection, internal wiring of electronic equipment, color-coded for quick identification and circuit tracing, easy breakouts for circuit routing, designed for mass-termination with standard IDC connectors

Specifications:

• Size (AWG): 28
• No. of Conductor: 10
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 9R28010
