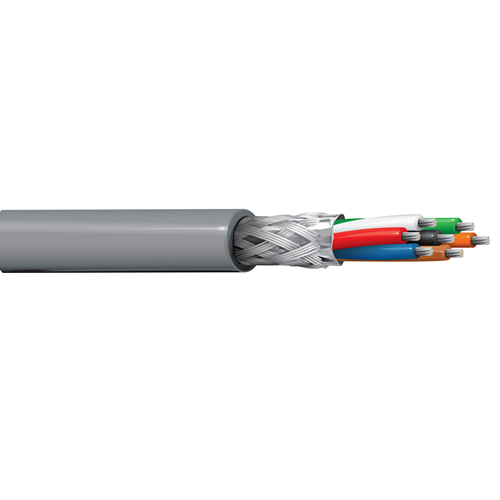

Belden 9932 24 AWG 7 Conductor 7x32 Stranding Tinned Copper 300V Computer EIA RS-232/423 Cable

Description:

Computer EIA RS-232/423 Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene insulation, overall Beldfoil (100% coverage) + tinned copper braid shield (65% coverage), drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.0125 in (0.318 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.253 in (6.43 mm)
• Overall Cable Diameter (Nominal): 0.253 in (6.43 mm)

Standards:

• Operating Temperature: -30°C to +80°C
• Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)

Applications:

• RS-232 Extended Distance and RS-423 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level Audio; Panel Wiring

Specifications:

• Size (AWG): 24
• No. of Conductor: 7
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 9932
