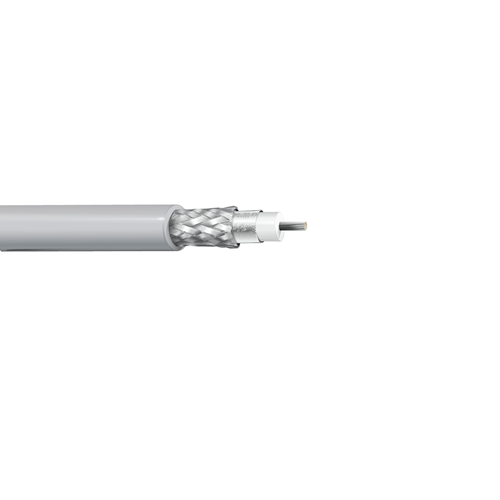

Belden 9907 20 AWG 1 Conductor 19x32 Stranding RG-58 Thinnet 50 Ohm Coax Cable
Belden 9907 20 AWG 1 Conductor 19x32 Stranding RG-58 Thinnet 50 Ohm Coax Cable
SKU: SKU: NES9907 Download PDF
- Belden 9907 20 AWG 1 Conductor 19x32 Stranding RG-58 Thinnet 50 Ohm Coax Cable
- Belden 9907 20 AWG 1 Conductor 19x32 Stranding RG-58 Thinnet 50 Ohm Coax Cable
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 9907 20 AWG 1 Conductor 19x32 Stranding RG-58 Thinnet 10BASE2 50 Ohm Coax Cable
Description:
IEEE 802.3 Ethernet Thinnet 10BASE2, 20 AWG stranded (19x32) 0.037" tinned copper conductor, foam polyethylene insulation, Duobond II (100% coverage) + an overall tinned copper braid shield (93% coverage), PVC jacket.
Insulation:
• Element: Coax(es
• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.102 in (2.59 mm)
Outer Shield:
• Layer 1: Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage [%] 100%
• Layer 2: Type Braid, Tinned Copper (TC) Material, Coverage [%] 93%
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.185 in (4.70 mm)
Applications:
• Thin Ethernet
• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 19x32
• Nom. Diameter: 0.037 in
• Impedance: 50 Ohm
• RG Type: 58
• Conductor Material: TC - Tinned Copper
• Part Number: 9907
