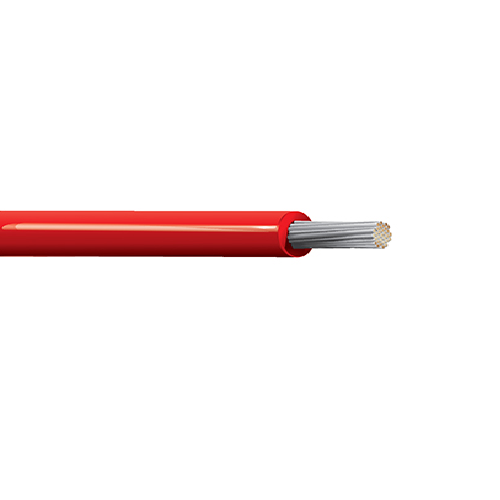

Belden 9906 6 AWG 1 Conductor 133x27 Stranding Tinned Copper 600V Lead Wire

Description:

Low Temp Plastic Lead Wire, 6 AWG (133x27) Tinned Copper, PVC Insulation, AWM 1283 AWM 1232 AWM 1015 CSA TYPE TEW 600V 105C.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Insulation Diameter: 0.331 in (8.41 mm)
• Overall Cable Diameter (Nominal): 0.331 in (8.41 mm)

Standards:

• UL Temperature: 105°C
• Voltage Rating: 600 V RMS

Applications:

• inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire.

Specifications:

• Size (AWG): 6
• No. of Conductor: 1
• Stranding: 133x27
• Conductor Material: TC - Tinned Copper
• Part Number: 9906
