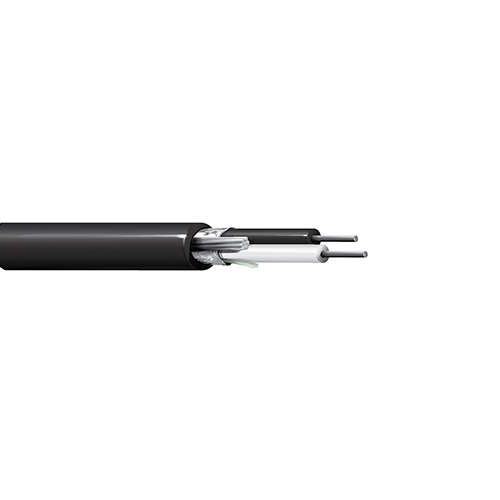

Belden 9894 20 AWG 15 Conductor Solid Tinned Copper 350V Electronic Cable

Belden 9894 20 AWG 15 Conductor Solid Tinned Copper 350V Electronic Cable

SKU: NES9894   Download PDF

Select a gauge:
  • Belden 9894 20 AWG 15 Conductor Solid Tinned Copper 350V Electronic Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $11.74 /FT   Web pricing policy
BEFORE   Now $11.74 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9894 20 AWG 15 Conductor Solid Tinned Copper 350V Electronic Cable

Description:

Electronic, 15 Conductor 20 AWG (Solid) Tinned Copper, PO Insulation, Overall Beldfoil Shield, PO Outer Jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.058 in mm

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (Solid) TC - Tinned Copper

Outer Jacket:

• Material: PE - Polyethylene
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.39 in
• Overall Cable Diameter (Nominal): 0.39 in

Standards:

• Voltage Rating: 350 V
• Operating Temperature: -40°C To +80°C

Applications:

• direct burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications

Specifications:

• Size (AWG): 20
• No. of Conductor: 15
• Stranding: Solid
• Conductor Material: TC - Tinned Copper
• Part Number: 9894
