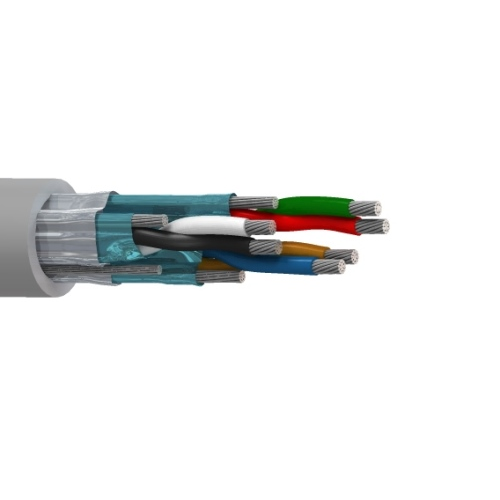

Belden 9873MN 20 AWG 3 Pair 26x34 Stranding Tinned Copper Multi-Pair Cable

Description:

SpaceMaker, 3 Pair 20AWG (26x34) Tinned Copper, PO Insulation, Individual and Overall Beldfoil Shield, PVC Outer Jacket, AWM 2937.

Insulation:

• Element: Pair(s)
• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.057 in (1.4 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (19x32) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.271 in
• Overall Cable Diameter (Nominal): 0.271 in

Specifications:

• Size (AWG): 20
• No. of Pair: 3
• Stranding: 26x34
• Conductor Material: TC - Tinned Copper
• Part Number: 9873MN
