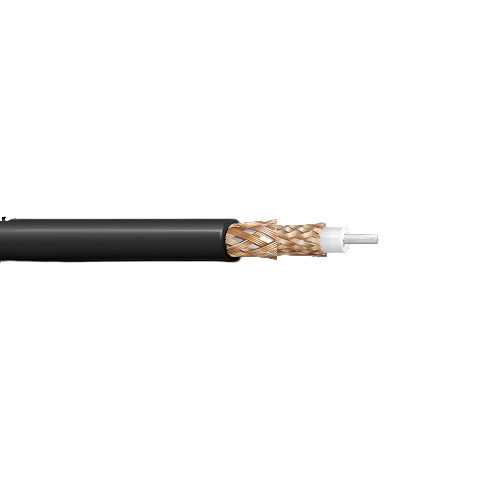

Belden 9850 18 AWG 1 Conductor 7x26 Stranded Tinned Copper 3700V Coax Cable

Description:-

18 AWG stranded (7x26) 0.048" tinned copper conductor, polyethylene insulation, double bare copper braid shield (95% coverage), non-contaminating PVC jacket.

Insulation:-

• Material: PE - Polyethylene
• Dia. (in.): 0.285

Outer Shield:-

• Layer: 1
• Shield Type: Braid
• Material: BC - Bare Copper
• Coverage: 95%

• Layer: 2
• Shield Type: Braid
• Material: BC - Bare Copper
• Coverage: 95%

Outer Jacket:-

• Material: PVCNC - Polyvinyl Chloride Non-Contaminating

Overall Cable:-

• Overall Nominal Diameter: 0.425 in

Standards:-

• Impedance (Ohm): 75
• UL Voltage Rating: 3700 V RMS
• Operating Temperature Range: -40°C To +80°C

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 7x26
• Dia. (in.):  0.048
• Conductor Material: TC - Tinned Copper
• Part Number: 9850
