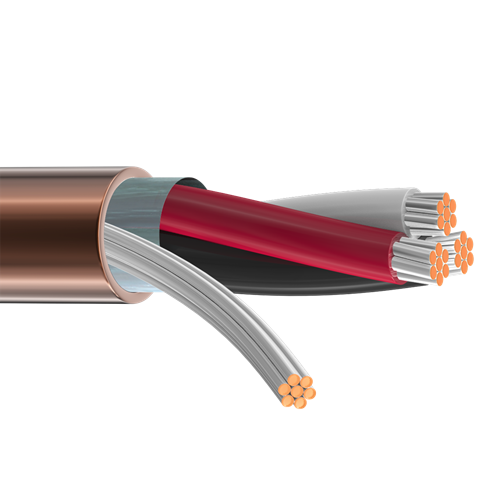

Belden 9770 22 AWG 3 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 3 Conductor 22 AWG (7x30) Tinned Copper, PP Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC
• Overall Beldfoil (aluminum-polyester tape) shield with 100% coverage and a 22 AWG stranded tinned copper drain wire.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.145 in (3.68 mm)
• Overall Cable Diameter (Nominal): 0.145 in (3.68 mm)

Standards:

• Voltage Rating: 300 V (CM).
• Operating Temperature: -20°C to +90°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
