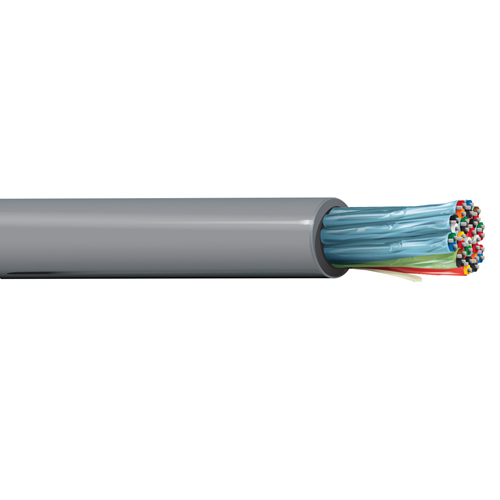

Belden 9734 24 AWG 12 Pair 7x32 Stranding Tinned Copper 300V Computer EIA RS-232/422 Cable

Description:

Computer EIA RS-232/422, Digital Audio Cable, 12-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene insulation, individually shielded with Beldfoil (100% coverage), 24 AWG stranded tinned copper drain wire, overall PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.0185 in (0.470 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.575 in (14.6 mm)
• Overall Cable Diameter (Nominal): 0.575 in (14.6 mm)

Standards:

• Operating Temperature: -20°C to +80°C
• Nom. Characteristic Impedance: 100 Ohms
• Voltage Rating: 300 V (CM), 300 V (UL AWM 2493)

Applications:

• RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 12
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 9734
