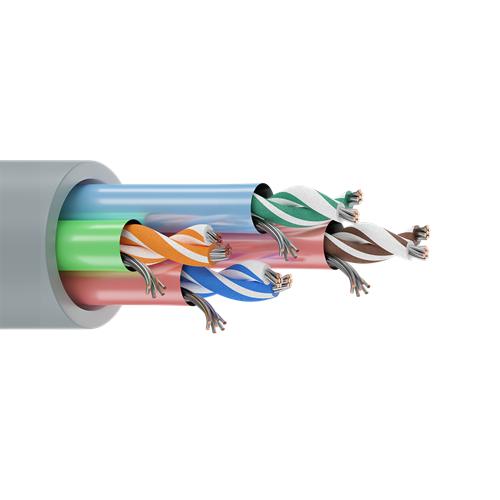

Belden 89728 24 AWG 4 Pair 7x32 Stranding Tinned Copper 300V Computer EIA RS-232/422 Cable

Description:

Computer EIA RS-232/422, Digital Audio Cable, 4-Pair, 24 AWG stranded (7x32) tinned copper conductor, foam FEP insulation, individually shielded pairs with Beldfoil (100% coverage), each with 24 AWG stranded tinned copper drain wire, overall fluorocopolymer jacket, plenum rated.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.307 in (7.80 mm)
• Overall Cable Diameter (Nominal): 0.307 in (7.80 mm)

Standards:

• Voltage Rating: 300 V (CMP)
• Operating Temperature: -70°C to +150°C
• Nom. Characteristic Impedance: 100 Ohm

Applications:

• extreme high temperature environments; RS-232 extended distance applications; RS-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 4
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 89728
