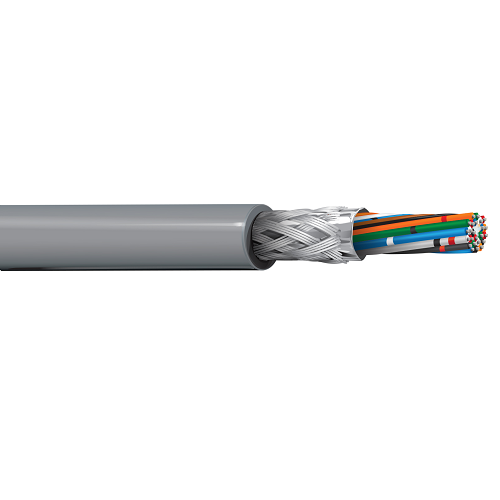

Belden 9637 28 AWG 25 Conductor 7x36 Stranding Tinned Copper 300V Computer EIA RS-232 Cable

Description:-

Computer EIA RS-232 Cable, 28 AWG stranded (7x36) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil (100% Coverage) + tinned copper braid shield (65% Coverage), PVC jacket.

Insulation:-

• Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.035 in (0.89 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 66%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.305 in
• Overall Cable Diameter (Nominal): 0.305 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +80°C

Applications:-

• rs-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:-

• Size (AWG): 28
• No. of Conductor: 25
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 9637
