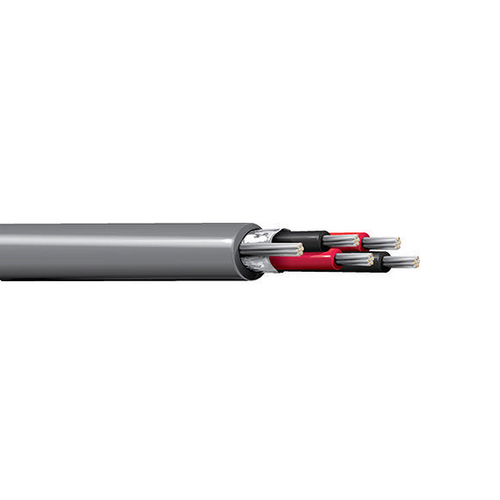

Belden 9565 18 AWG 15 Pair 19x30 Stranding Tinned Copper 300V High Performance Instrumentation Cable
Belden 9565 18 AWG 15 Pair 19x30 Stranding Tinned Copper 300V High Performance Instrumentation Cable
SKU: SKU: NES9565 Download PDF
gauge:
- Belden 9565 18 AWG 15 Pair 19x30 Stranding Tinned Copper 300V High Performance Instrumentation Cable
- Belden 9565 18 AWG 15 Pair 19x30 Stranding Tinned Copper 300V High Performance Instrumentation Cable
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $40.28 /FT
Regular price
BEFORE
Sale price
Now $40.28 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 9565 18 AWG 15 Pair 19x30 Stranding Tinned Copper 300V High Performance Instrumentation Cable
Description:-
High Performance Instrumentation, 15 Pair 18 AWG (19x30) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil Shield, PVC Outer Jacket, PLTC
Insulation:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.078 in (2.0 mm)
Outer Shield:-
• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (7x26) TC - Tinned Copper
Outer Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.739 in (18.8 mm)
Standards:-
• UL Voltage Rating: 300 V (PLTC)
• Operating Temperature Range: -30°C To +105°C
Applications:-
• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), encoders, control circuits, distributed control
Specifications:-
• Size (AWG): 18
• No. of Pair: 15
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9565
Description:-
High Performance Instrumentation, 15 Pair 18 AWG (19x30) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil Shield, PVC Outer Jacket, PLTC
Insulation:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.078 in (2.0 mm)
Outer Shield:-
• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (7x26) TC - Tinned Copper
Outer Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.739 in (18.8 mm)
Standards:-
• UL Voltage Rating: 300 V (PLTC)
• Operating Temperature Range: -30°C To +105°C
Applications:-
• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), encoders, control circuits, distributed control
Specifications:-
• Size (AWG): 18
• No. of Pair: 15
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9565
