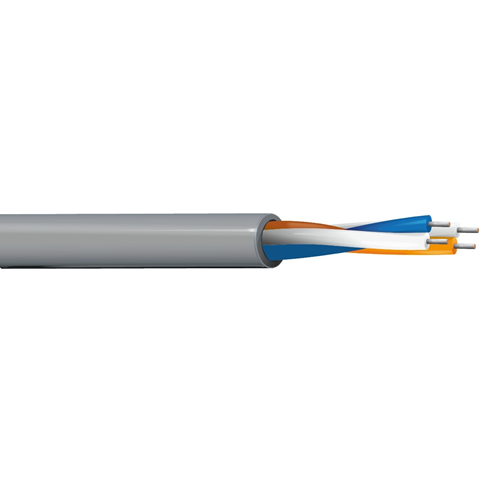

Belden 9562 24 AWG 4 Conductor Solid Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 24 AWG solid tinned copper conductors, PVC insulation, twisted pairs, PVC jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.041 in (1.0 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.199 in
• Overall Cable Diameter (Nominal): 0.199 in

Standards:

• Operating Temperature: -20°C to +60°C
• Voltage Rating: 300 V (CMG), 150 V (AWM 2576)

Applications:

• telephone cables; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); voice communications

Specifications:

• Size (AWG): 24
• No. of Conductor: 4
• Stranding: Solid
• Conductor Material: TC - Tinned Copper
• Part Number: 9562
