Belden 9508 24 AWG 8 Pair 7x32 Stranding Tinned Copper 300V Computer EIA RS-232 Cable

Description:

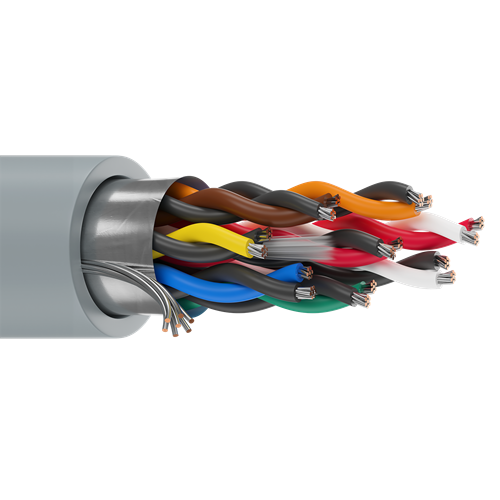

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, 8 twisted pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire (continued), PVC jacket.

Insulation:

• Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.044 in (1.1 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.324 in (8.23 mm)
• Overall Cable Diameter (Nominal): 0.324 in (8.23 mm)

Standards:

• Operating Temperature: -30°C to +80°C
• Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Applications:

• RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 8
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 9508
