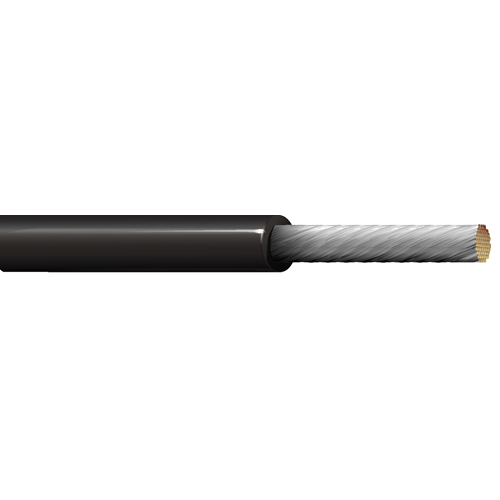

Belden 9438 14 AWG 1 Conductor 104x34 Stranding Tinned Copper 600V Lead Wire
Belden 9438 14 AWG 1 Conductor 104x34 Stranding Tinned Copper 600V Lead Wire
SKU: SKU: NES9438 Download PDF
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 9438 14 AWG 1 Conductor 104x34 Stranding Tinned Copper 600V Lead Wire
Description:
Low Temp Plastic Lead Wire, 14 AWG (104x34) Tinned Copper, PO Insulation.
Insulation:
• Material: PE - Polyethylene
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Insulation Diameter: 0.139 in (3.53 mm)
• Overall Cable Diameter (Nominal): 0.139 in (3.53 mm)
Standards:
• Voltage Rating: 600 V RMS
• Operating Temperature: -50°C To +80°C
Applications:
• direct burial, roadway loop cables
Specifications:
• Size (AWG): 14
• No. of Conductor: 1
• Stranding: 104x34
• Conductor Material: TC - Tinned Copper
• Part Number: 9438
• Size (AWG): 14
• No. of Conductor: 1
• Stranding: 104x34
• Conductor Material: TC - Tinned Copper
• Part Number: 9438
