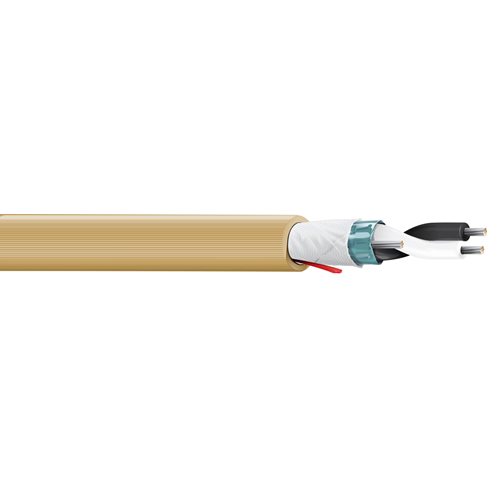

Belden 9414 22 AWG 1 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, twisted pair, overall Beldfoil shield (100% coverage), 22 AWG stranded tinned copper drain wire, jacket-striated PVC.

Insulation:

• Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.051 in (1.3 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Nom. Diameter: 0.18 in
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +80°C
• Nom. Characteristic Impedance: 38 Ohms

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring.

Specifications:

• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9414
