Belden 9396 25 AWG 1 Conductor 3x33 Stranding Tinned Copper 300V Microphone Cable

Description:-

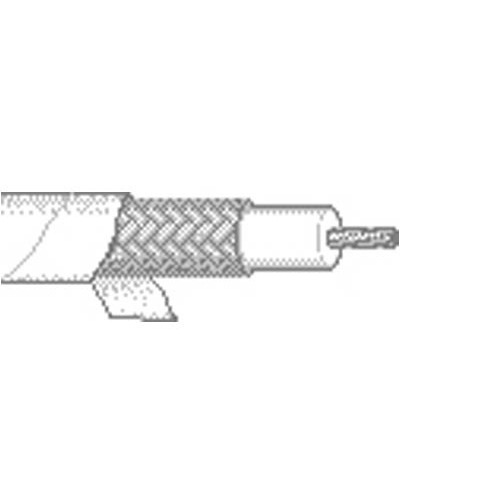

25 AWG stranded (7x33) composite copper conductor, PVC insulation, (3) strands TC, (4) strands TCCS, TC spiral shield (90% coverage), PVC jacket.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.058 in

Outer Shield:-

• Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage: 90%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.1 in

Standards:-

• Non-UL Voltage Rating: 300 V DC
• Nominal Characteristic Impedance: 31 Ohm
• Operating Temperature Range: -20°C To +60°C

Specifications:-

• Size (AWG): 25
• No. of Conductor: 1
• Stranding: 3x33
• Nominal Diameter: 0.021 in
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Part Number: 9396
