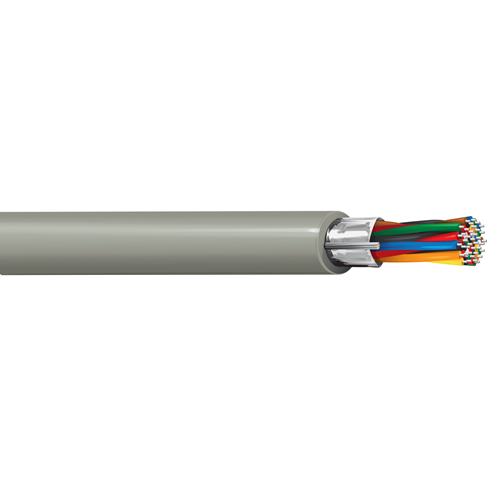

Belden 9315 22 AWG 15 Pair Solid Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 22 AWG solid tinned copper conductors, PVC insulation, twisted pairs, overall Beldfoil shield (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.013 in

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper
• Overall Beldfoil (aluminum/polyester tape) shield providing 100% coverage.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.449 in
• Nominal Wall Thickness: 0.037 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -20°C to +80°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
