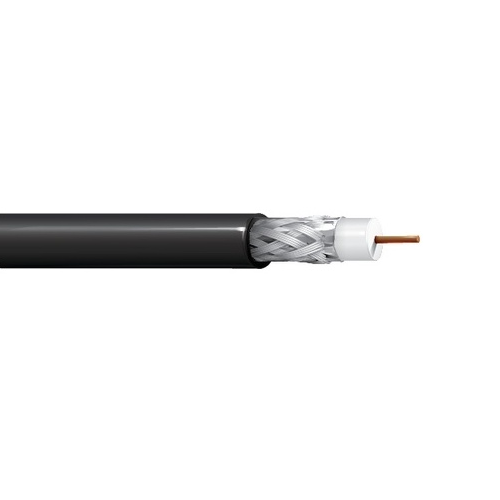

Belden 9292 14 AWG 1 Conductor Solid Bare Copper 300V Analog Video Coax Cable

Description:-

75 Ohm Analog Video Coax, RG-11, 14 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 60% Tinned Copper Braid Shield, PVC Jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.280 in (7.11 mm)
• Gas injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 60%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.405 in (10.3 mm)
• Overall Cable Diameter (Nominal): 0.405 in (10.3 mm)

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -35°C to +75°C

Applications:-

• Standard analog video

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 11
• Nom. Diameter: 0.064 in
• Conductor Material: BC - Bare Copper
• Part Number: 9292
