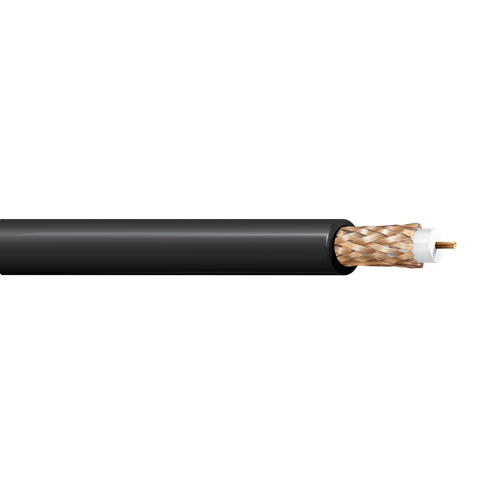

Belden 9259 22 AWG 1 Conductor 7x30 Stranding Bare Copper Covered Steel 300V Analog Video Coax Cable

Description:

75 Ohm Analog Video Coax, RG-59, 22 AWG (7x30) Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PVC Jacket, CM.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.146 in (3.71 mm)

Outer Shield:

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.240 in (6.10 mm)
• Overall Cable Diameter (Nominal): 0.240 in (6.10 mm)

Standards:

• Operating Temperature: -40°C to +80°C
• Nom. Characteristic Impedance: 75 Ohm
• Voltage Rating: 300 V (CM), 30 V (UL AWM 1354)

Applications:

• Standard analog video

Specifications:

• Size (AWG): 22
• No. of Conductor: 1
• Stranding: 7x30
• RG Type: 59
• Nom. Diameter: 0.029 in
• Conductor Material: BC - Bare Copper
• Part Number: 9259
