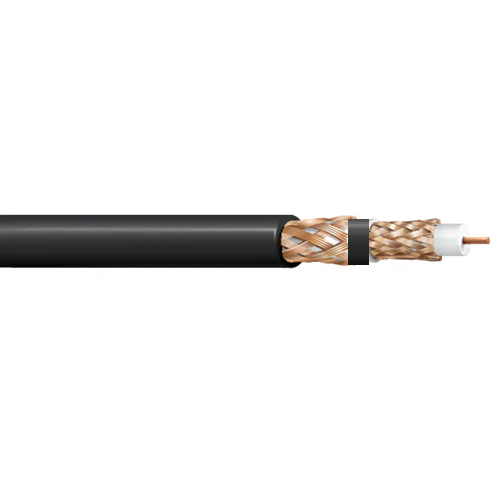

Belden 9192 15 AWG 1 Conductor 19x27 Stranding Bare Copper 300V Video Triax Coax Cable

Description:-

15 AWG stranded (19x27) 0.064" bare copper conductor, foam HDPE insulation, bare copper braid shields (90% and 80% coverage), PVC jacket (polyethylene insulation between braids).

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.312 in (7.92 mm)
• Gas Injected

Inner Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 90%

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 90%

Inner Jacket:-

• Material: PE - Polyethylene
• Nom. Diameter: 0.391 in (9.93 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.52 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +75°C

Specifications:-

• Size (AWG): 15
• No. of Conductor: 1
• Stranding: 19x27
• RG Type: 11
• Nom. Diameter: 0.064 in
• Conductor Material: BC - Bare Copper
• Part Number: 9192
