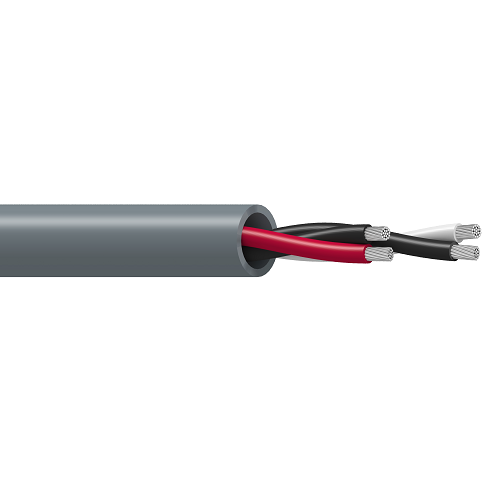

Belden 9156ZH 18 AWG 2 Pair 16x30 Stranding Tinned Copper 300V Electronic Cable

Description:-

Electronic, 2 Pair 18 AWG (16x30) Tinned Copper, PVC Insulation, LSZH Outer Jacket, CMG

Insulation:-

• Material: PE - Polyethylene
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.073 in (1.9 mm)

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.333 in
• Overall Cable Diameter (Nominal): 0.333 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C to 75°C

Specifications:-

• Size (AWG): 18
• No. of Pairs: 2
• Stranding: 16x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9156ZH
