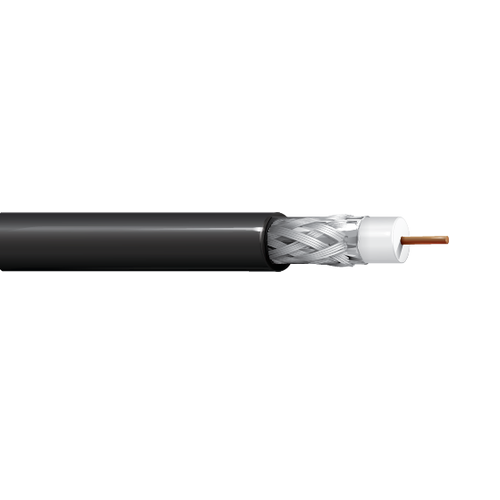

Belden 89292 14 AWG 1 Conductor Solid Bare Copper 300V Analog Video Coax Cable

Description:-

14 AWG solid 0.064" bare copper conductor, plenum, foam FEP insulation, Duofoil; tinned copper braid shield (65% coverage), FEP jacket.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nominal Diameter: 0.274 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.346 in
• Material Trade Name: Teflon

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -70°C To +200°C

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 11
• Nominal Diameter: 0.064 in
• Conductor Material: BC - Bare Copper
• Part Number: 89292
