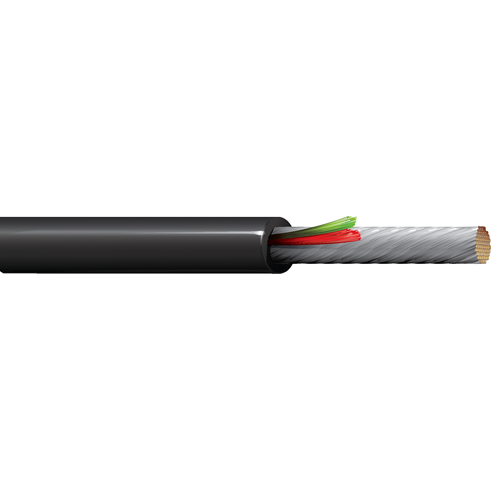

Belden 8899 18 AWG 1 Conductor 65x36 Stranding Tinned Copper Lead Wire

Description:

Low Temp Rubber Lead Wire, 18 AWG (65x36) Tinned Copper, EPDM Insulation, 5000V 90C.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.0485 in (1.23 mm)
• Nom. Insulation Diameter: 0.144 in (3.66 mm)
• Overall Cable Diameter (Nominal): 0.144 in (3.66 mm)

Standards:

• Voltage Rating: 5000 V
• Operating Temperature: -40°C To +80°C

Applications:

• used as a test probe lead for electrical and electronic measuring for test equipment.

Specifications:

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 65x36
• Conductor Material: TC - Tinned Copper
• Part Number: 8899
