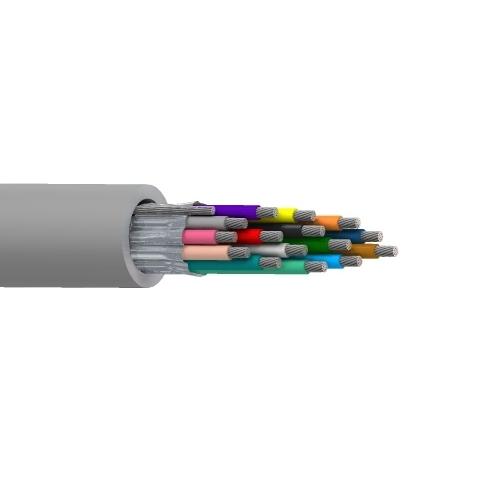

Belden 8886MN 22 AWG 15 Conductor 19x34 Stranding Tinned Copper 300V SpaceMaker Cable

Description:-

SpaceMaker, 15 Conductor 22 AWG (19x34) Tinned Copper, PO Insulation, Overall Beldfoil Shield, PVC Outer Jacket, AWM 2937.

Insulation:-

• Material: PP - Polypropylene
• Nominal Wall Thickness: 0.016 in

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil
• Drainwire Type: 22 AWG TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.271 in
• Nominal Wall Thickness: 0.016 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 22 Ohm
• Operating Temperature Range: -20°C To +80°C

Specifications:-

• Size (AWG): 22
• No. of Conductors: 15
• Stranding: 19x34
• Conductor Material: TC - Tinned Copper
• Part Number: 8886MN
