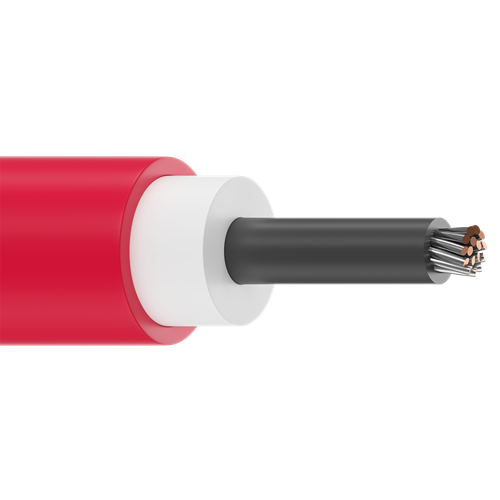

Belden 8866 18 AWG 1 Conductor 16x30 Stranding Tinned Copper Lead Wire

Belden 8866 18 AWG 1 Conductor 16x30 Stranding Tinned Copper Lead Wire

SKU: NES8866 Download PDF

gauge:
  • Belden 8866 18 AWG 1 Conductor 16x30 Stranding Tinned Copper Lead Wire
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $3.72 /FT
BEFORE   Now $3.72 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 8866 18 AWG 1 Conductor 16x30 Stranding Tinned Copper Lead Wire

Description:

Low Temp Plastic Lead Wire, 18 AWG (16x30) Tinned Copper, Conductive PO/PO Insulation, PVC Outer Jacket, 40kV.

Insulation:

• Material: PO - Polyolefin
• Nom. Thickness: 0.057 in (1.4 mm)
• Nom. Insulation Diameter: 0.178 in (4.52 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.208 in (5.28 mm)
• Overall Cable Diameter (Nominal): 0.208 in (5.28 mm)

Standards:

• Temperature Operating: -40°C To +80°C
• Voltage Rating: 40,000 V DC, 11,000 V RMS (AC (60 Hertz))

Applications:

• internal wiring of electronic equipment, high voltage applications

Specifications:

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 16x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8866
