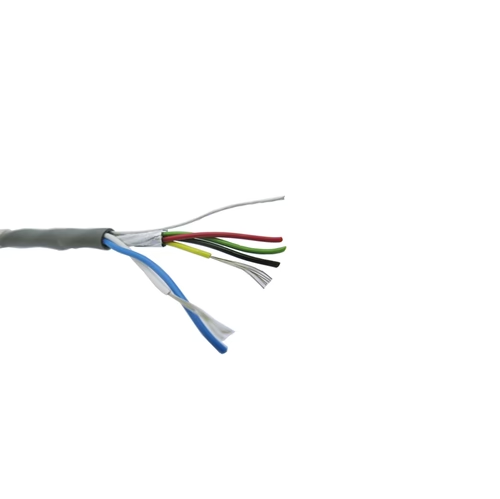

Belden 8786 24 AWG 4 Conductor 22 AWG 2 Conductor Audio Control and Instrumentation Cable

Description:

4 Conductor 24 AWG stranded (7x32) and 2 Conductor 22 AWG stranded (7x30) TC conductors, PVC insulation, (4) conductors cabled, 22 AWG stranded TC drain wire, CM PVC jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0155 in (0.394 mm)
• Nom. Insulation Diameter: 0.054 in (1.4 mm), 0.060 in (1.5 mm)

Inner Shield:

• Element: Over Quad
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.028 in (0.71 mm)
• Nom. Diameter: 0.236 in
• Overall Cable Diameter (Nominal): 0.236 in.

Standards:

• Voltage Rating: 300 V
• Temperature Rating: Maximum operating temperature of 90°C

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
