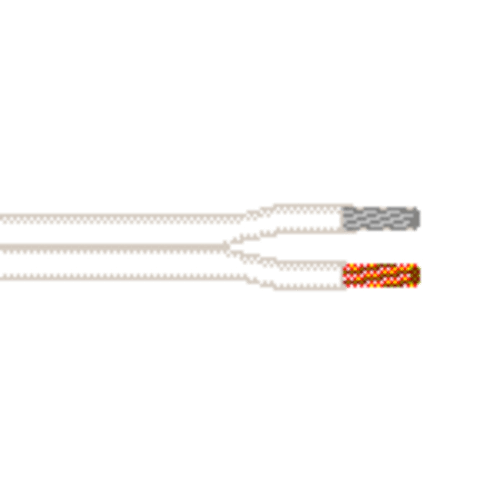

Belden 8782 24 AWG 2 Conductor 7x32 Stranding Polyvinyl Chloride 300V Speaker Cable

Description:-

2 Conductor 24 AWG stranded (7x32) ETP high-conductivity copper conductors, PVC insulation, parallel: (1) Tinned, (1) Bare, CM rated.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.058 x 0.116 in

Standards:-

• Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Speaker Cable

Specifications:-

• Size (AWG): 24
• No. of Conductor: 1
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper (High Conductivity)

• Size (AWG): 24
• No. of Conductor: 1
• Stranding: 7x32
• Conductor Material: BC - Bare Copper
• Part Number: 8782
