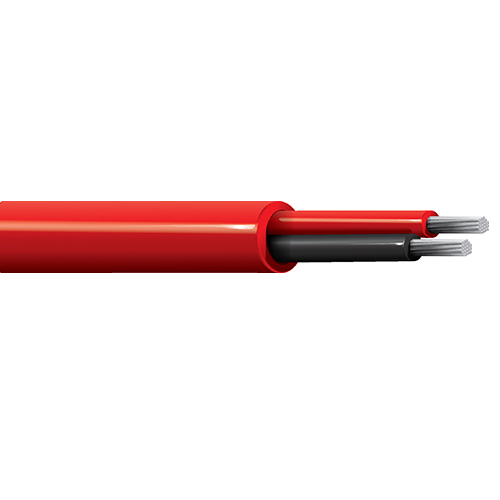

Belden 87740 18 AWG 2 Conductor 19x30 Stranding Tinned Copper 300V Electronic Cable

Description:

High Temperature Electronic, 2 Conductor 18 AWG (19x30) Tinned Copper, FEP Insulation, PVDF Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.0065 in (0.17 mm)
• Nom. Insulation Diameter: 0.057 in (1.4 mm)

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Diameter: 0.136 in
• Overall Cable Diameter (Nominal): 0.136 in

Standards:

• Impedance: 72 Ohms
• Voltage Rating: 300 V.
• Operating Temperature: -20°C To +150°C

Applications:

• extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring
