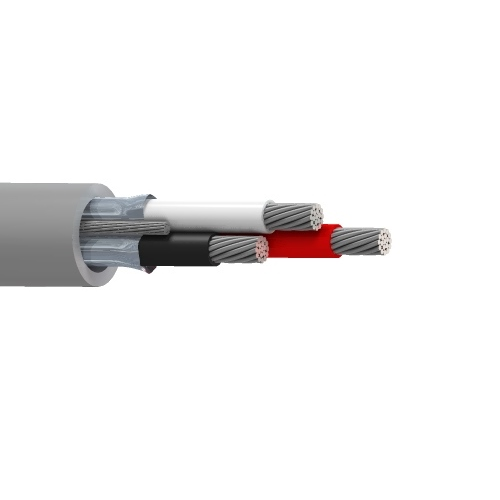

Belden 8770MN 18 AWG 3 Conductor 41x34 Stranding Tinned Copper 300V SpaceMaker Cable

Description:-

SpaceMaker, 3 Conductor 18 AWG (41x34) Tinned Copper, PO Insulation, Overall Beldfoil Shield, PVC Outer Jacket, AWM 2937

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.067 in (1.7 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (19x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.181 in
• Overall Cable Diameter (Nominal): 0.181 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +80°C

Specifications:-

• Size (AWG): 18
• No. of Conductor: 3
• Stranding: 41x34
• Conductor Material: TC - Tinned Copper
• Part Number: 8770MN
