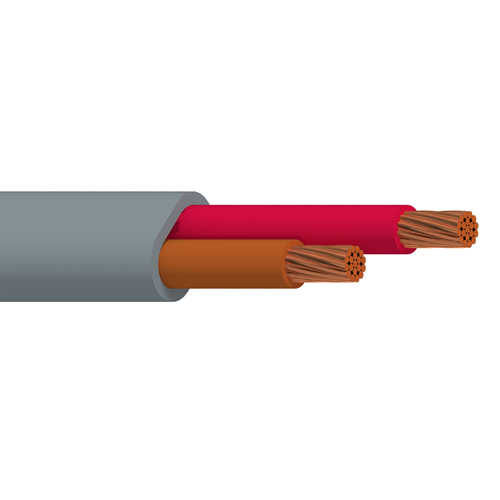

Belden 8678 10 AWG 2 Conductor 19x23 Stranding Bare Copper 300V Electronic Cable
Belden 8678 10 AWG 2 Conductor 19x23 Stranding Bare Copper 300V Electronic Cable
SKU: SKU: NES8678 Download PDF
Select a gauge:
- Belden 8678 10 AWG 2 Conductor 19x23 Stranding Bare Copper 300V Electronic Cable
- Belden 8678 10 AWG 2 Conductor 19x23 Stranding Bare Copper 300V Electronic Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 8678 10 AWG 2 Conductor 19x23 Stranding Bare Copper 300V Electronic Cable
Description:
Electronic, 2 Conductor 10 AWG (19x23) Bare Copper, PVC Insulation, PVC Jkt.
Insulation:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.032 in (0.81 mm)
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.225 x 0.400 in
Standards:
• Voltage Rating: 300 V
• Operating Temperature: -20°C to +75°C
Applications:
• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio
Specifications:
• Size (AWG): 10
• No. of Conductor: 2
• Stranding: 19x23
• Conductor Material: BC - Bare Copper
• Part Number: 8678
• Size (AWG): 10
• No. of Conductor: 2
• Stranding: 19x23
• Conductor Material: BC - Bare Copper
• Part Number: 8678
