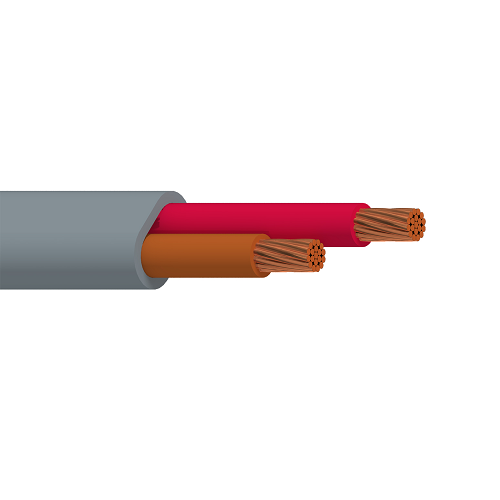

Belden 8673 12 AWG 2 Conductor 19x25 Stranding Bare Copper 300V Electronic Cable

Description:-

Electronic, 2 Conductor 12 AWG (19x24) Bare Copper, PVC Insulation.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.026 in (0.66 mm)
• Nom. Insulation Diameter: 0.20 in (5.1 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Diameter: 0.186 x 0.328 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio

Specifications:-

• Size (AWG): 12
• No. of Conductor: 2
• Stranding: 19x25
• Conductor Material: BC - Bare Copper
• Part Number: 8673
