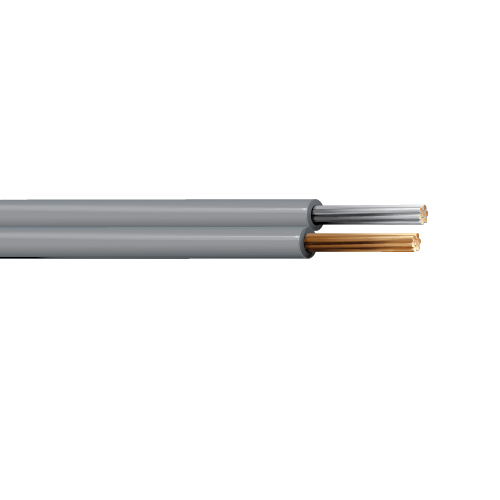

Belden 8649 20 AWG 2 Conductor 7x28 Stranding Polyvinyl Chloride 300V Speaker Cable

Description:-

2 Conductor 20 AWG stranded (7x28) ETP high-conductivity copper conductors, PVC insulation, parallel: (1) tinned, (1) bare, CM rated.

Insulation:-

• Material: PVC - Polyvinyl Chloride

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.073 x 0.146 in

Standards:-

• Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Speaker Cable

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper (High Conductivity)

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 7x28
• Conductor Material: BC - Bare Copper
• Part Number: 8649
