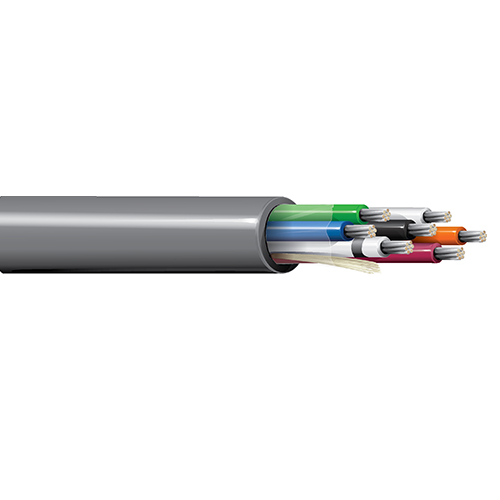

Belden 8628 14 AWG 7 Conductor 19x27 Stranding Tinned Copper 600V Electronic Cable

Belden 8628 14 AWG 7 Conductor 19x27 Stranding Tinned Copper 600V Electronic Cable

SKU: NES8628   Download PDF

Select a gauge:
  • Belden 8628 14 AWG 7 Conductor 19x27 Stranding Tinned Copper 600V Electronic Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $20.11 /FT   Web pricing policy
BEFORE   Now $20.11 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 8628 14 AWG 7 Conductor 19x27 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 7 Conductor 14 AWG (19x27) Tinned Copper, PVC Insulation, PVC Outer Jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.045 in (1.1 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.060 in (1.5 mm)
• Nom. Diameter: 0.623 in (15.8 mm)
• Overall Cable Diameter (Nominal): 0.623 in (15.8 mm)

Standards:

• Voltage Rating: 600 V.
• Operating Temperature: -20°C to +80°C

Applications:

• up to 600V analog signals ; up to 600V control ; line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 14
• No. of Conductor: 7
• Stranding: 19x27
• Conductor Material: TC - Tinned Copper
• Part Number: 8628
