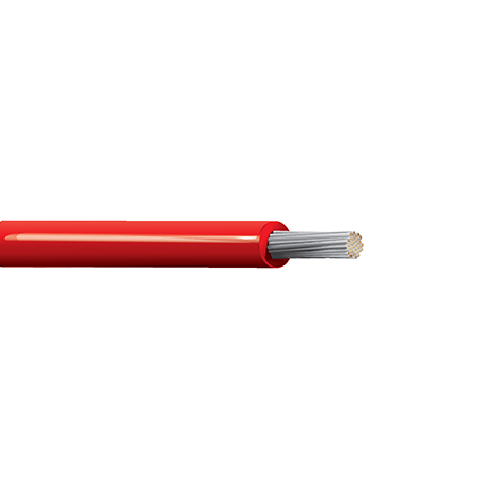

Belden 8503 22 AWG 1 Conductor 7x30 Stranding Tinned Copper 600V Lead Wire

Belden 8503 22 AWG 1 Conductor 7x30 Stranding Tinned Copper 600V Lead Wire

SKU: NES8503   Download PDF

Select a gauge:
  • Belden 8503 22 AWG 1 Conductor 7x30 Stranding Tinned Copper 600V Lead Wire
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.72 /FT   Web pricing policy
BEFORE   Now $0.72 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 8503 22 AWG 1 Conductor 7x30 Stranding Tinned Copper 600V Lead Wire

Description:

Low Temp Plastic Lead Wire, 22 AWG (7x30) Tinned Copper, PVC Insulation, TYPE B MIL-W-16878/1 600V 105C.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)
• Overall Cable Diameter (Nominal): 0.050 in (1.3 mm)

Standards:

• Voltage Rating: 600 V RMS
• Military Compliance: MIL-W-16878/1
• Operating Temperature: -40°C To +105°C

Applications:

• inter-connection circuits, internal wiring of computer and electronic equipment, (Type B) MIL-W-16878/1-Low Temp applications

Specifications:

• Size (AWG): 22
• No. of Conductor: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8503
