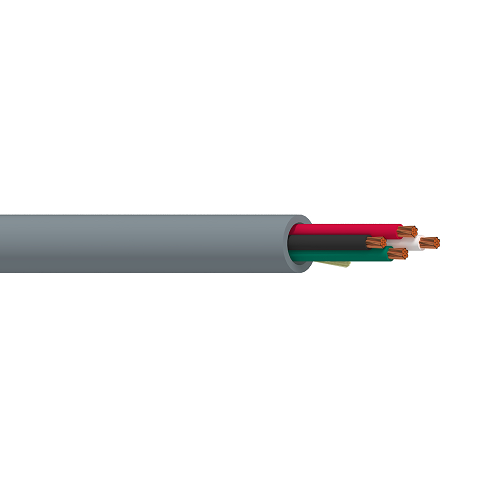

Belden 8484 20 AWG 4 Conductor 7x28 Stranding Bare Copper 300V Electronic Cable

Description:-

Electronic, 4 Conductor 20 AWG (7x28) Bare Copper, PVC Insulation, PVC Outer Jacket

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0095 in (0.24 mm)
• Nom. Insulation Diameter: 0.055 in (1.4 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.02 in (0.51 mm)
• Nom. Diameter: 0.173 in
• Overall Cable Diameter (Nominal): 0.173 in.

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -30°C To +90°C

Applications:-

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; panel wiring

Specifications:-

• Size (AWG): 20
• No. of Conductor: 4
• Stranding: 7x28
• Conductor Material: BC - Bare Copper
• Part Number: 8484
