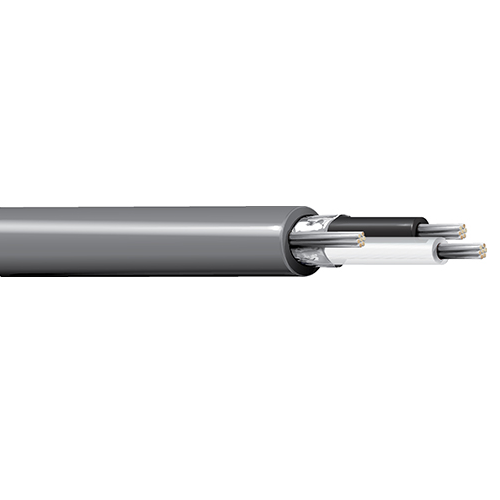

Belden 8471ZH 16 AWG 2 Conductor 19x29 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 2 Conductor 16 AWG (19x29) Tinned Copper, PO Insulation, LSZH Outer Jacket, CMG.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.095 in (2.4 mm)

Outer Jacket:

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.254 in
• Overall Cable Diameter (Nominal): 0.254 in.

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +75°C

Specifications:

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 8471ZH
