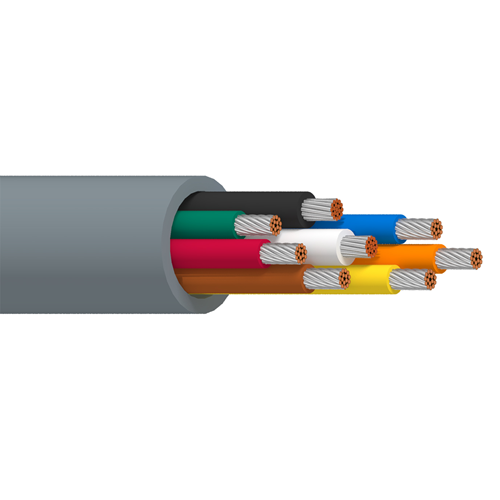

Belden 8448 22 AWG 6 Conductor 18 AWG 2 Conductor Tinned Copper 300V Electronic Cable

Description:

Electronic, 8 Conductor 18+22 AWG (16x30+7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.

Insulation:

6 Conductor Insulation:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.080 in mm

2 Conductor Insulation:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.259 in
• Overall Cable Diameter (Nominal): 0.259 in

Standards:

• Operating Temperature: -20°C to +80°C
• Voltage Rating: 300 V (CMG), 150 V (AWM 2576)

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; panel wiring
