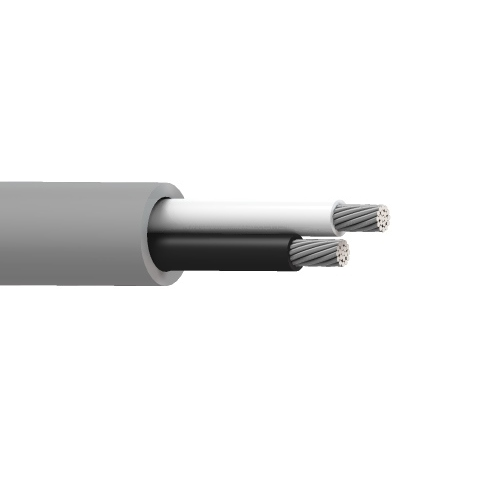

Belden 8442MN 22 AWG 2 Conductor 19x34 Stranding Tinned Copper 300V SpaceMaker Cable

Description:

SpaceMaker, 2 Conductor 22 AWG (19x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937.

Insulation:

• Element: Pair(s)
• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.132 in
• Overall Cable Diameter (Nominal): 0.132 in

Specifications:

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 19x34
• Conductor Material: TC - Tinned Copper
• Part Number: 8442MN
