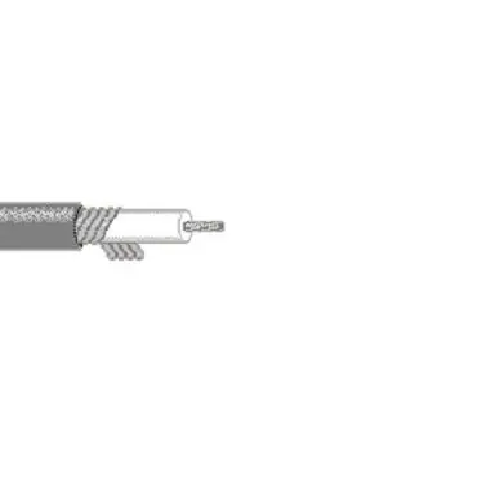

Belden 8421 25 AWG 1 Conductor 7x33 Stranding 300V Coax Cable

Description:-

25 AWG Stranded (7x33) conductor, (3) TC, (4) TCCS, FPE insulation, tinned copper spiral wrapped shield (86% coverage), PVC jacket.

Insulation:-

• Material: FPE - Foam Polyethylene
• Nom. Insulation Wall Thickness: 0.051 in.
• Insulation Diameter: 0.125 in.

Outer Shield:-

• Layer: 1
• Shield Type: Spiral Serve
• Material: TC - Tinned Copper
• Coverage: 86 %

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Outer Jacket Nominal Wall Thickness: 0.023 in.

Overall Nominal Diameter:

• Overall Nominal Diameter: 0.180 in.

Applications:

Audio Connecting Cable

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 80 Ohms
• Operating Temperature Range: -20°C To +80°C

Specifications:-

• Size (AWG): 25
• No. of Conductor: 1
• Stranding: 7x33
• Conductor Material: TC/TCCS -Tinned Copper/Tinned Copper Covered Steel
• Part Number: 8421
