Belden 8417 25 AWG 1 Conductor 7x33 Stranding 100V Audio and Instrumentation Cable

Description:-

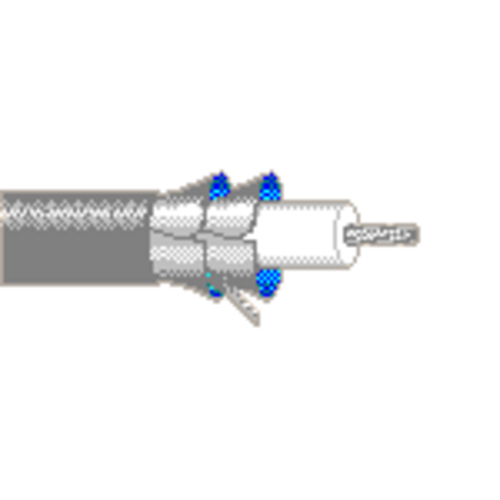

25 AWG stranded (7x33) Tinned Copper/Tinned Copper Covered Steel conductor, FPE insulation, double Beldfoil shield (100% coverage), 26 AWG stranded TC drain wire, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.061 in (1.5 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage: 100%

• Layer: 2
• Shield Type: Tape
• Material Trade Name: Beldfoil
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Paper Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.14 in (3.6 mm)

Standards:-

• Voltage Rating: 100 V RMS
• Nominal Characteristic Impedance: 48 Ohm
• Operating Temperature Range: -20°C To +80°C

Specifications:-

• Size (AWG): 25
• No. of Conductor: 1
• Stranding: 7x33
• Nominal Diameter: 0.021 in
• Conductor Material: TC+TCCS - Tinned Copper (High Conductivity) + Tinned Copper Covered Steel (High Conductivity)
• Part Number: 8417
