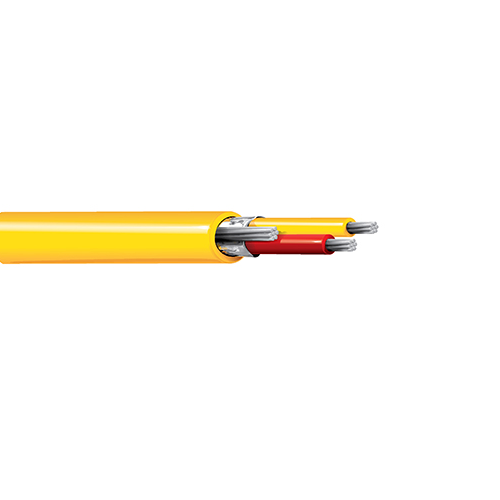

Belden 83953 16 AWG 1 Pair 7x24 Stranding Chromel and Alumel 300V Type KX Thermocouple Cable

Description:

Type KX Thermocouple, 1 Pair 16 AWG (7x24) Chromel+Alumel, FEP Insulation Yellow, Red Color Code, Yellow FEP Outer Jacket, CL3P 200C PLTC SUN RES.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.058 in (1.5 mm)

Outer Shield:

• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.012 in (0.30 mm)
• Nom. Diameter: 0.187 in (4.75 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -70°C To +200°C

Applications:

• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), encoders, control circuits, distributed control
