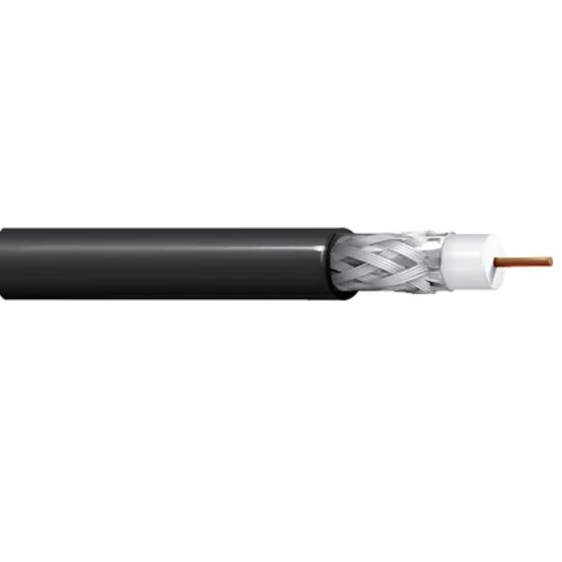

Belden 83266 30 AWG 1 Conductor 7x38 Stranding RG180 95 Ohm Coax Cable

Description:

95 Ohm RG-180, 30 AWG Stranded (7x38) 0.012" silver-coated copper-covered steel conductor, PTFE insulation, silver-plated copper braid shield (90% coverage), FEP jacket, commercial non-QPL product.

Insulation:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Insulation Diameter: 0.102 in

Outer Shield:

• Layer 1: Type Braid, Silvered Copper (SC) Material, Coverage [%] 90%

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.141 in
