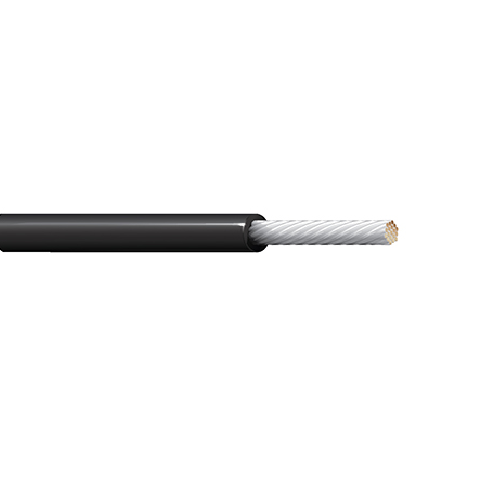

Belden 83005 22 AWG 1 Conductor 7x30 Stranding Silver Plated Copper 600V Lead Wire

Belden 83005 22 AWG 1 Conductor 7x30 Stranding Silver Plated Copper 600V Lead Wire

SKU: NES83005   Download PDF

Select a gauge:
  • Belden 83005 22 AWG 1 Conductor 7x30 Stranding Silver Plated Copper 600V Lead Wire
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.22 /FT   Web pricing policy
BEFORE   Now $1.22 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 83005 22 AWG 1 Conductor 7x30 Stranding Silver Plated Copper 600V Lead Wire

Description:

High Temp Plastic Lead Wire, 22 AWG (7x30) Silver Plated Copper, TFE Insulation, AWM 1213 105C TYPE E MIL-W-16878/4 600V 200C.

Insulation:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)
• Overall Cable Diameter (Nominal): 0.050 in (1.3 mm)

Standards:

• Voltage Rating: 600 V RMS
• Military Compliance: MIL-W-16878/4
• Operating Temperature: -70°C To +200°C

Applications:

• high temperature, inter-connection circuits, internal wiring of computers and electronic equipment, (Type E) MIL-W-16878/4 applications

Specifications:

• Size (AWG): 22
• No. of Conductor: 1
• Stranding: 7x30
• Conductor Material: SC - Silvered Copper
• Part Number: 83005
