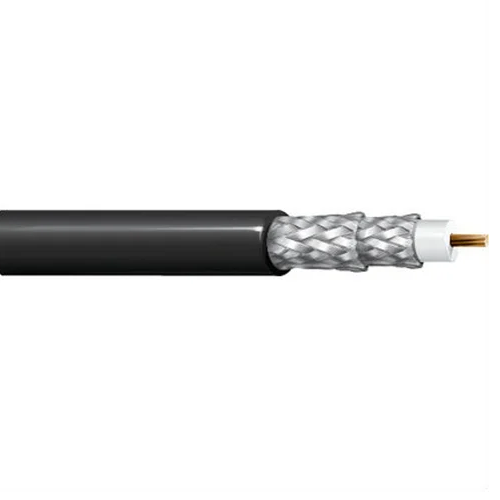

Belden 8281B 20 AWG 1 Conductor Solid Bare Copper 300V Precision Video Coax Cable

Description:-

20 AWG solid 0.031" bare copper conductor, flame-retardant semi-foam polyethylene insulation, tinned copper/bare copper double braid shield (95% coverage), PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.198 in

Outer Shield:-

• Layer: 1
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.305 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +80°C

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 59
• Nominal Diameter: 0.031 in
• Conductor Material: BC - Bare Copper
• Part Number: 8281B
