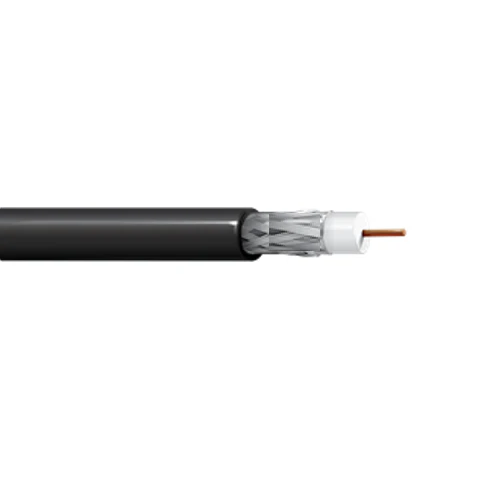

Belden 8279 23 AWG 1 Conductor 7x32 Stranding Bare Copper Precision Video Coax Cable

Description:

23 AWG stranded (7x32) 0.023" bare compacted copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), polyethylene jacket.

Insulation:

• Material: PE - Polyethylene
• Nominal Diameter: 0.146 in

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:

• Material: PE - Polyethylene
• Nom. Diameter: 0.22 in

Standards:

• Non-UL Voltage Rating: 2300 V RMS
• Operating Temperature: -55°C To +80°C
• Nom. Characteristic Impedance: 75 Ohm

Specifications:

• Size (AWG): 23
• No. of Conductor: 1
• Stranding: 7x32
• Nom. Diameter: 0.023 in
• Conductor Material: BC-C - Bare Copper (Compacted)
• Part Number: 8279
